• Redis
    • 环境安装
      • docker run -d –name redis -p 6379:6379 redis
      • docker exec -it redis redis-cli （进入容器安装）
      • 安装 redis-cli
        • brew install redis
        • redis-cli –version
      • 连接 redis
        • redis-cli -h 127.0.0.1 -p 6379
      • ping
        • PONG
    • Redis 定位
      • 性能：减少 DB 压力
      • 并发：原子操作
      • 临时数据：状态、计数、锁
    • 不适合场景
      • 强一致性核心数据
      • 超大对象
      • 长期冷数据
    • 基本特性
      • 命令执行是单线程
      • 网络 I/O 是多路复用
    • 核心数据结构

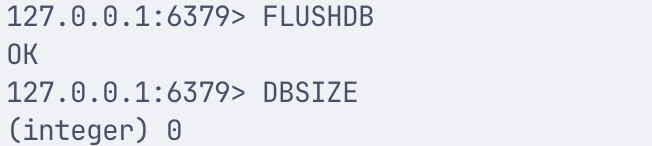

      • 清空数据
        • FLUSHDB
      • 查看有多少 key
        • DBSIZE
      • String

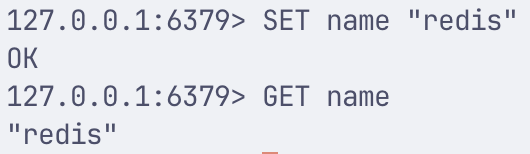

        • 基本 GET/SET

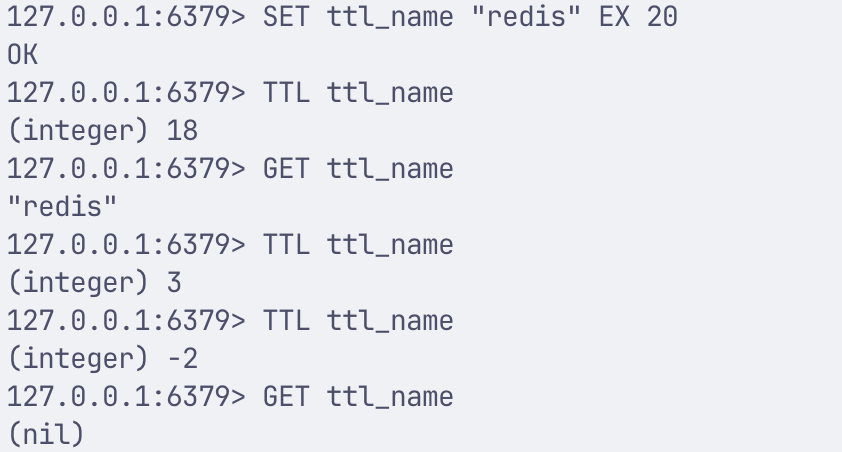

        • 带过期时间 TTL
          • EX 是秒，PX 是毫秒
          • TTL 返回剩余的秒数
          • TTL = -1: 存在但没过期时间，-2 不存在

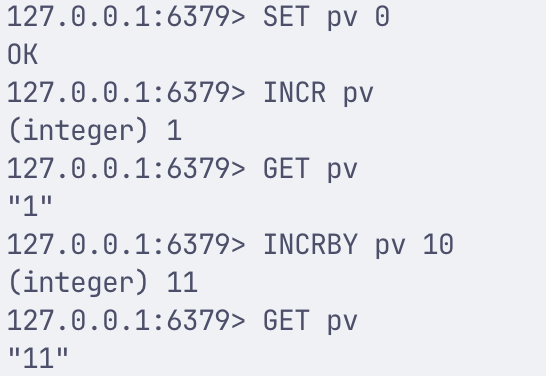

        • 原子自增(计数器)
      • List

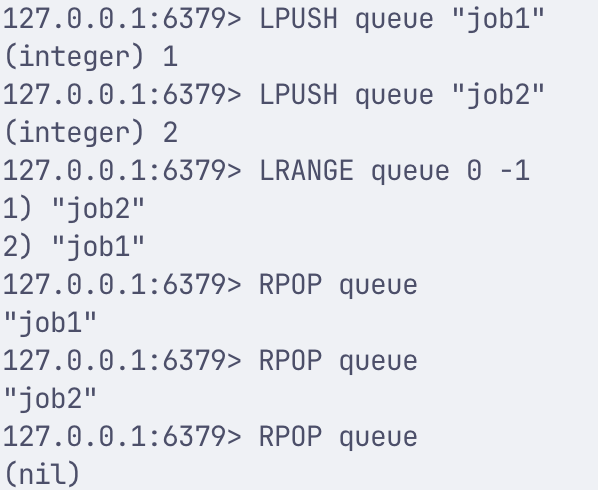

        • 左进右出：队列 FIFO

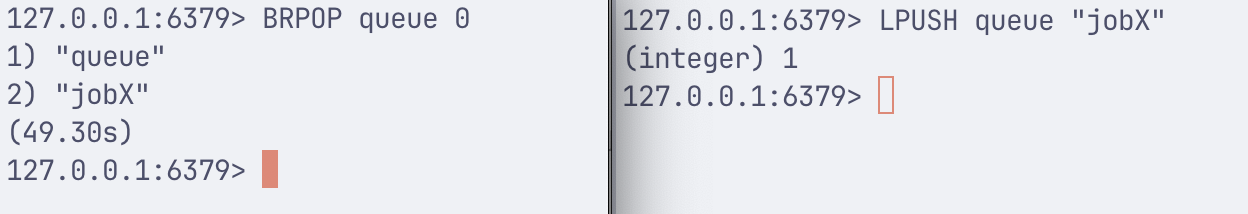

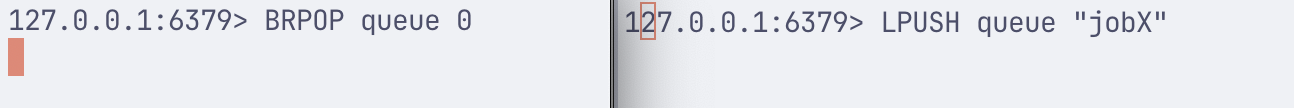

        • 阻塞队列
          • BRPOP key timeout
            • key 要监听的队列
            • timeout 最大等待时间(s) 0=无限等待，5=最多等5s

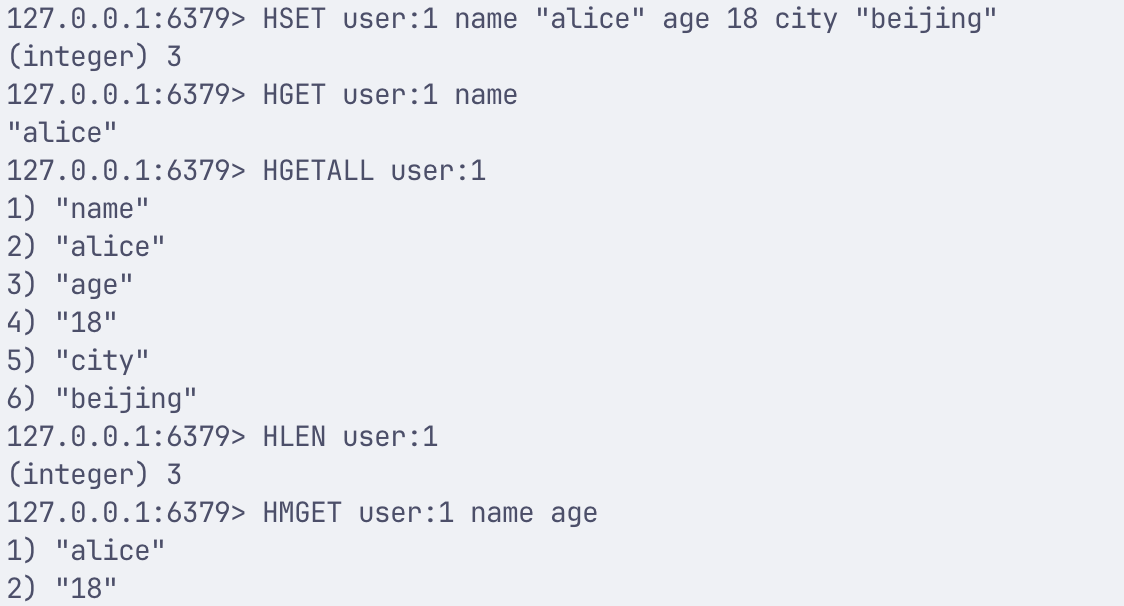

      • Hash (存对象)
        • 写入写出
      • Set (去重，关系，共同好友)

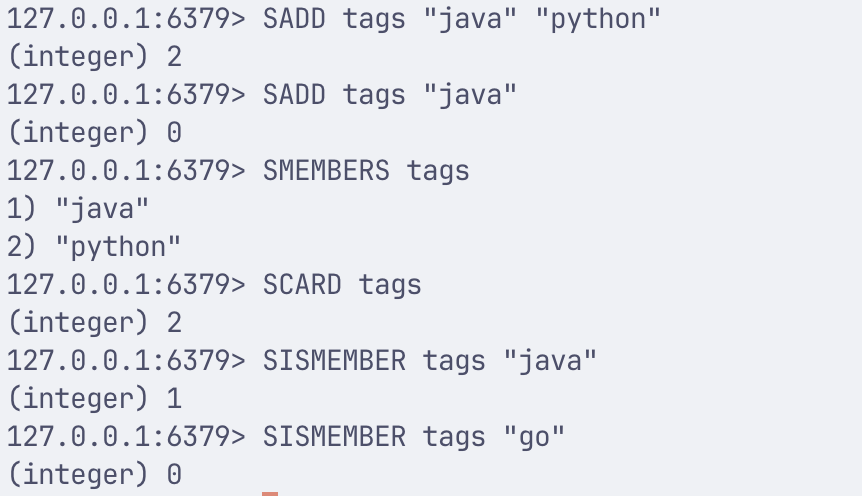

        • 去重集合

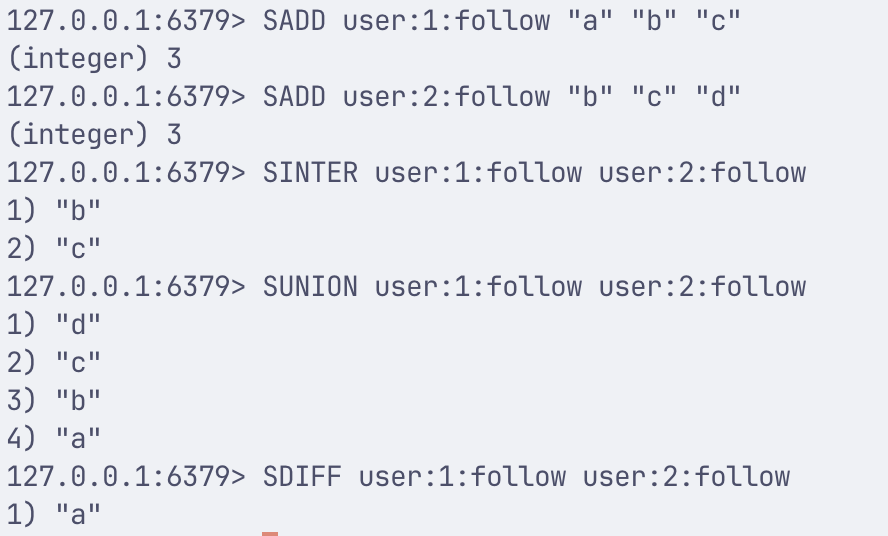

        • 交集、并集、差集
      • ZSet (排行榜：积分、热度、TopN)
        • ZSet = Set + Score

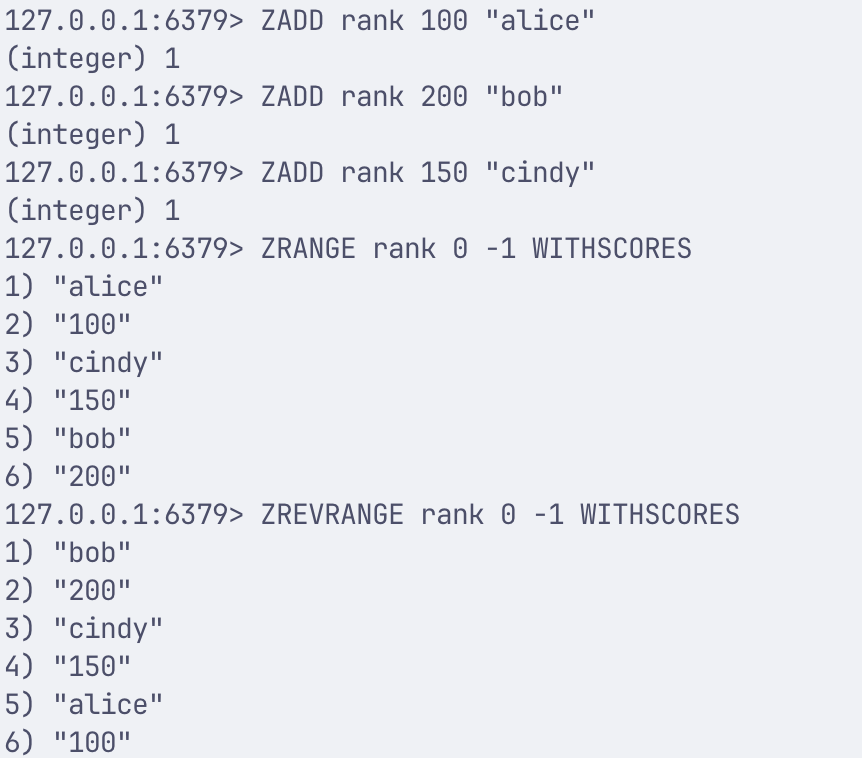

        • 添加与排序读取

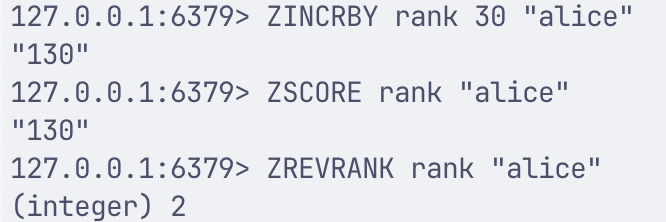

        • 增加分数与查询名次

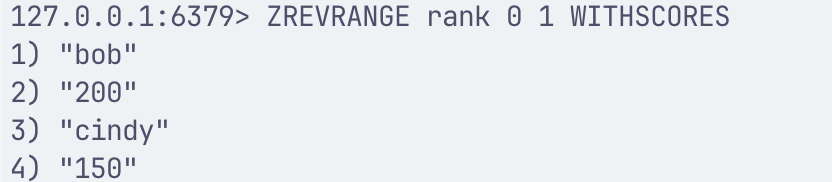

        • TOPN

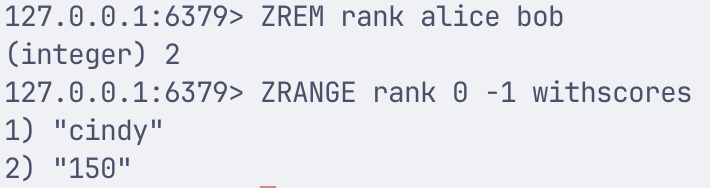

        • 按成员删除

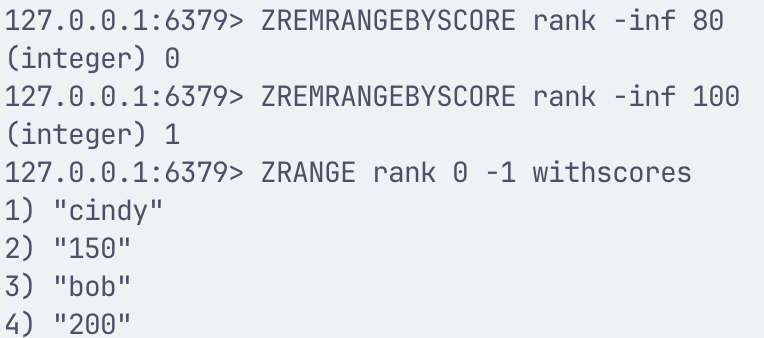

        • 按 score 范围删除

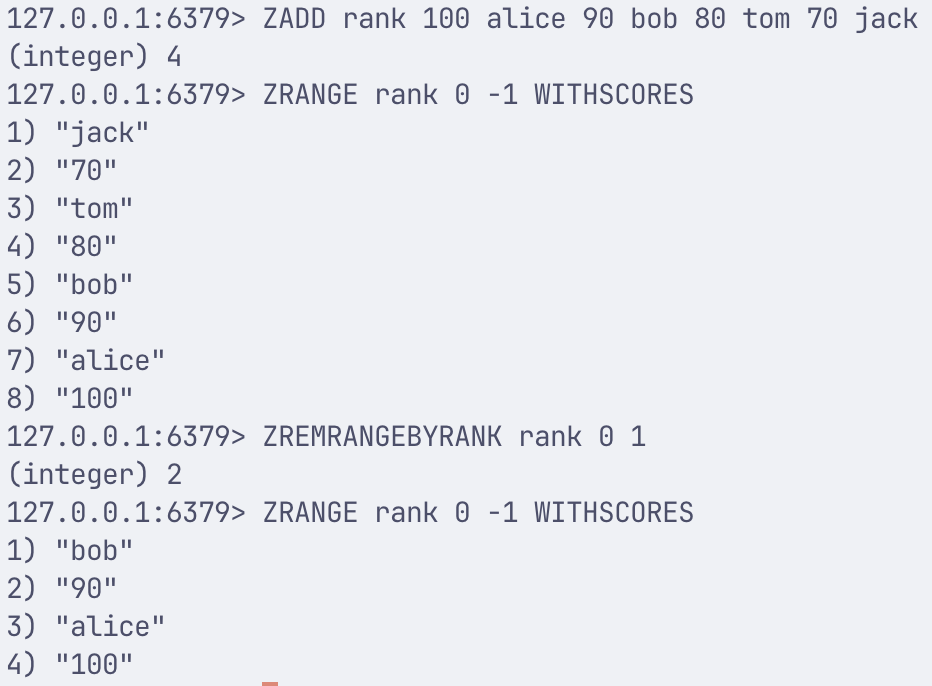

        • 按排名删除
      • Bitmap (用户签到/布尔状态)
        • 场景：统计 2026-02 月的签到情况
        • 思路
          • 一个用户 = 1 个 Bitmap
          • 一天 = 1 bit
          • 签到 = 1
          • 未签到 = 0
          • key = sign:用户 ID:202602
          • offset = 第几天 - 1
        • 基础实验

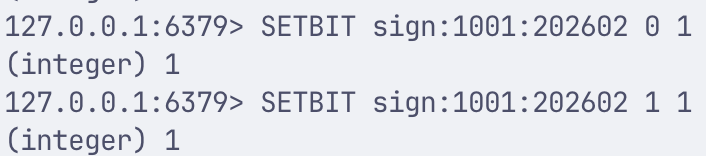

          • 第一天签到 + 第二天签到
          • 查询某天是否签到
          • 统计本月签到天数
      • HyperLogLog (UV/去重统计)
        • 场景：统计某天网站 UV

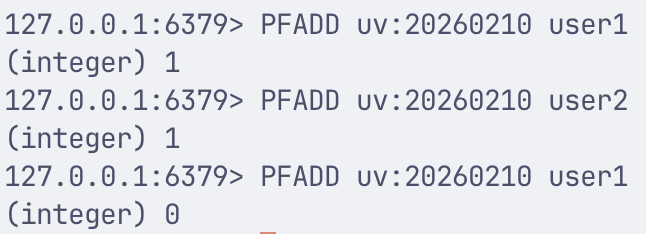

        • 模拟用户访问
        • 统计 UV
        • 特点
          • 内存：固定 12KB
          • 准确度：99%
      • Geo (地理位置/附近的人)
        • 场景
          • 查找 5km 内的商家
          • ZSet + GeoHash

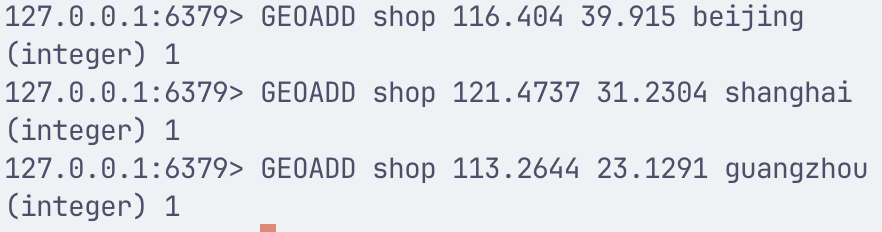

        • 添加地理位置
        • 查看两点距离

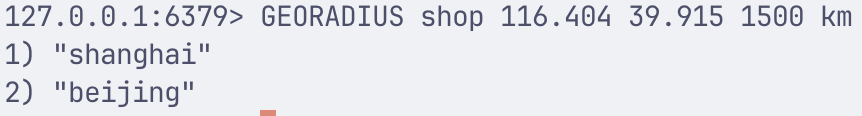

        • 查询附近 1500km 的城市

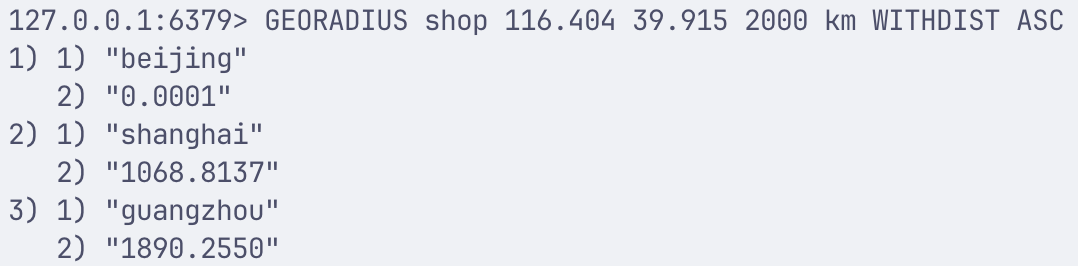

        • 带距离排序
      • 通用排查命令

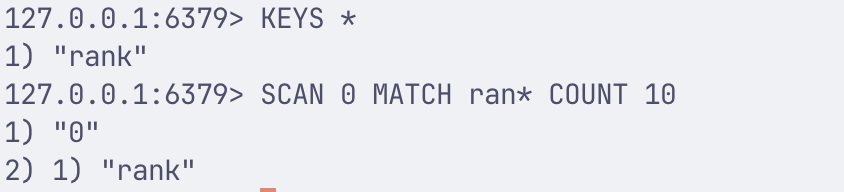

        • 查看 Key
          • 一般生产环境中不建议用 KEYS，建议使用 SCAN

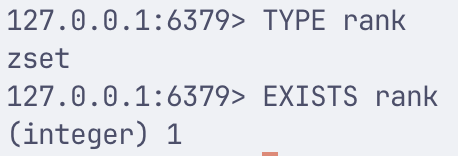

        • 查看类型/是否存在
        • 删除 key
    • 缓存系统实战
      • 目标
        • 实现用户查询接口: Get /user/{id}
      • 架构
        • Controller -> Service -> Redis -> FakeDB
      • 逻辑
        • 先查 Redis
        • 没命中查数据库
        • 写回 Redis
        • 加 TTL
        • 防穿透 + 防击穿
      • Java 实现

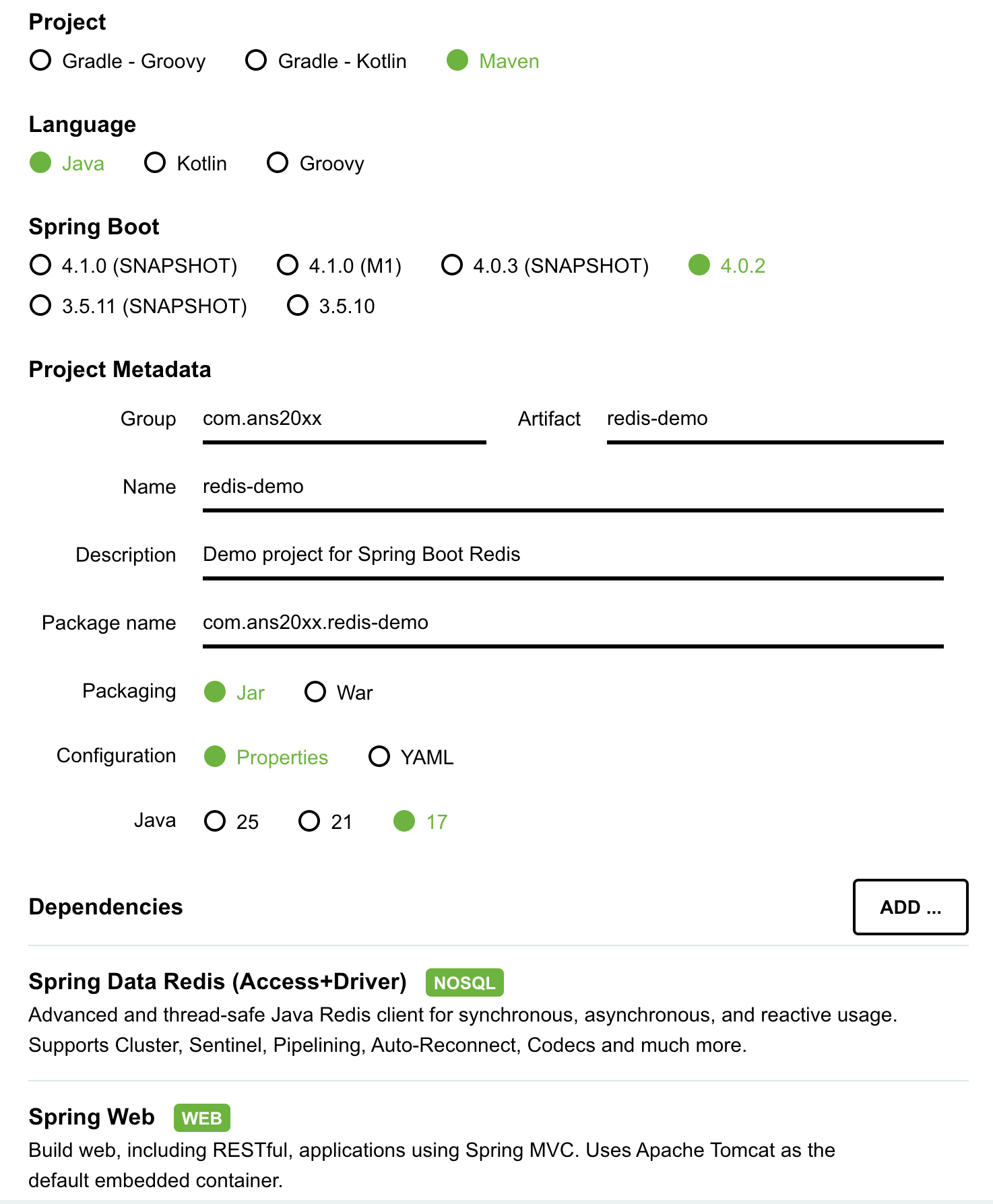

        • 初始化项目 https://start.spring.io

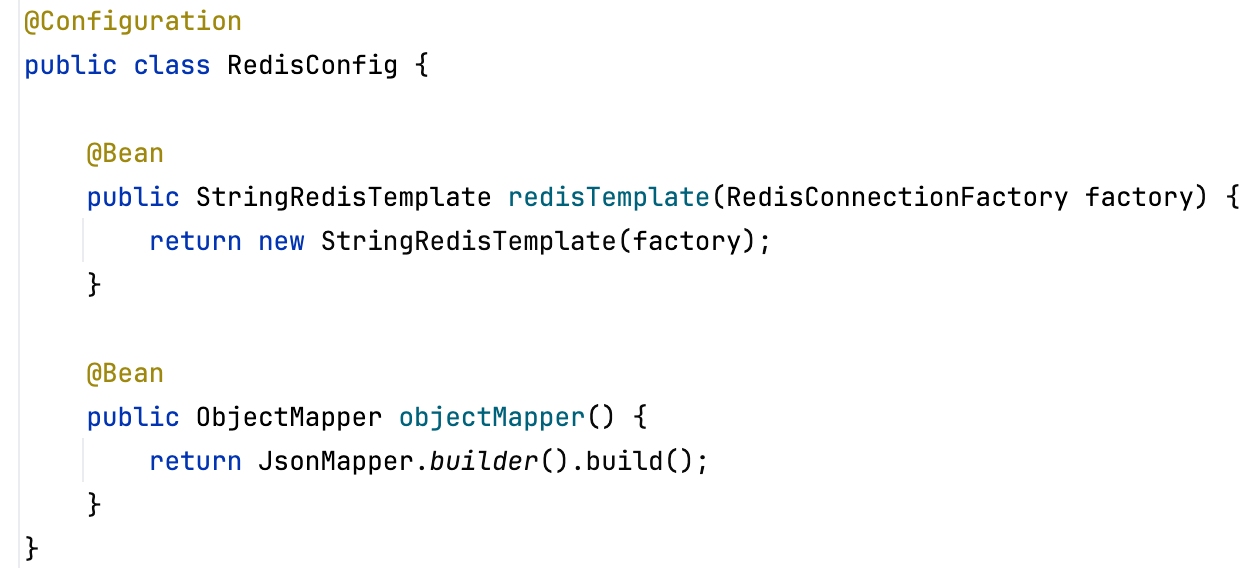

        • 配置 RedisTemplate

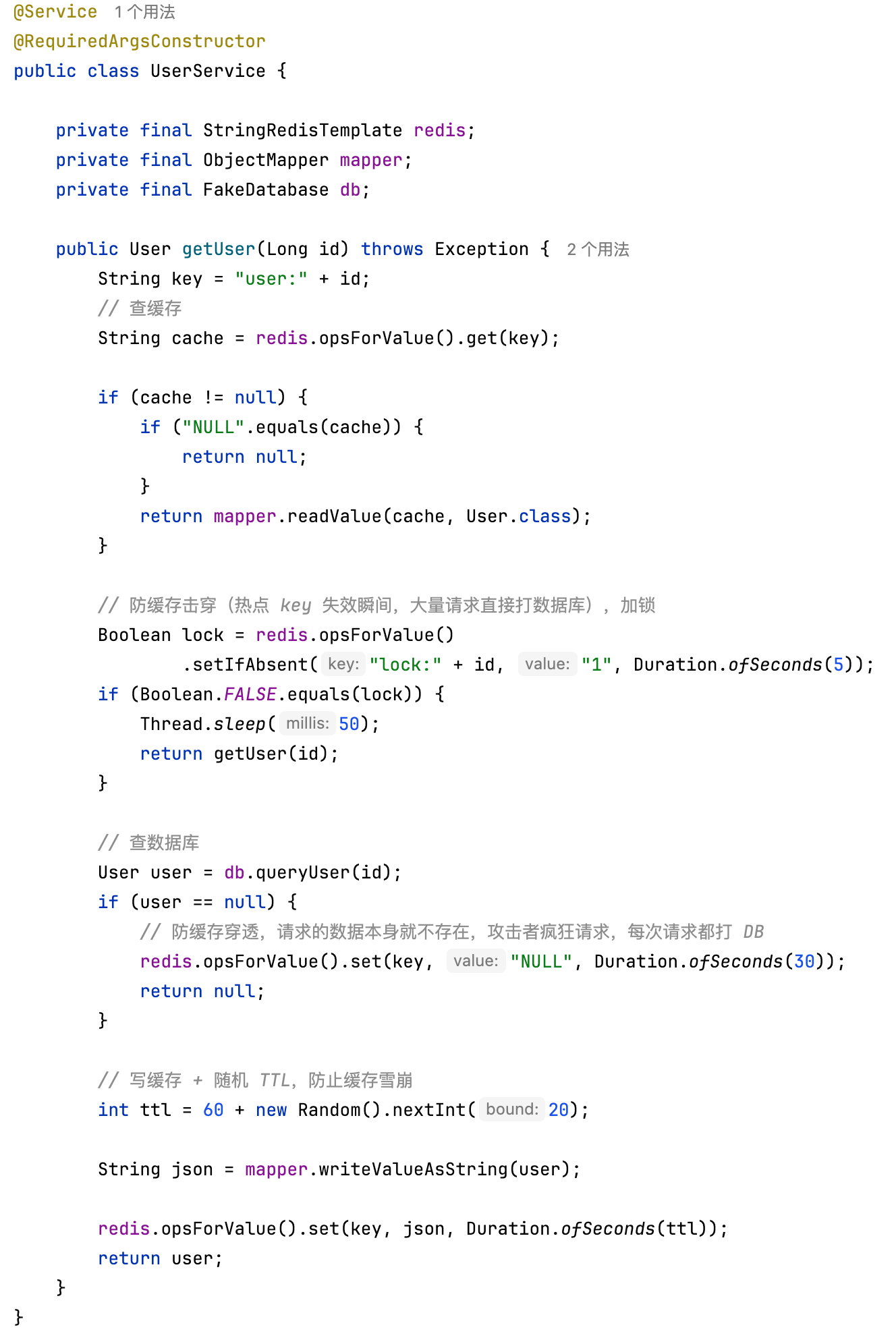

        • 编写 Service
        • 编写 Controller
        • 访问 localhost:8080/user/1
        • 查看 redis 内容
        • 压测
          • ab -n 10000 -c 100 http://localhost:8080/user/1
    • 秒杀系统实战

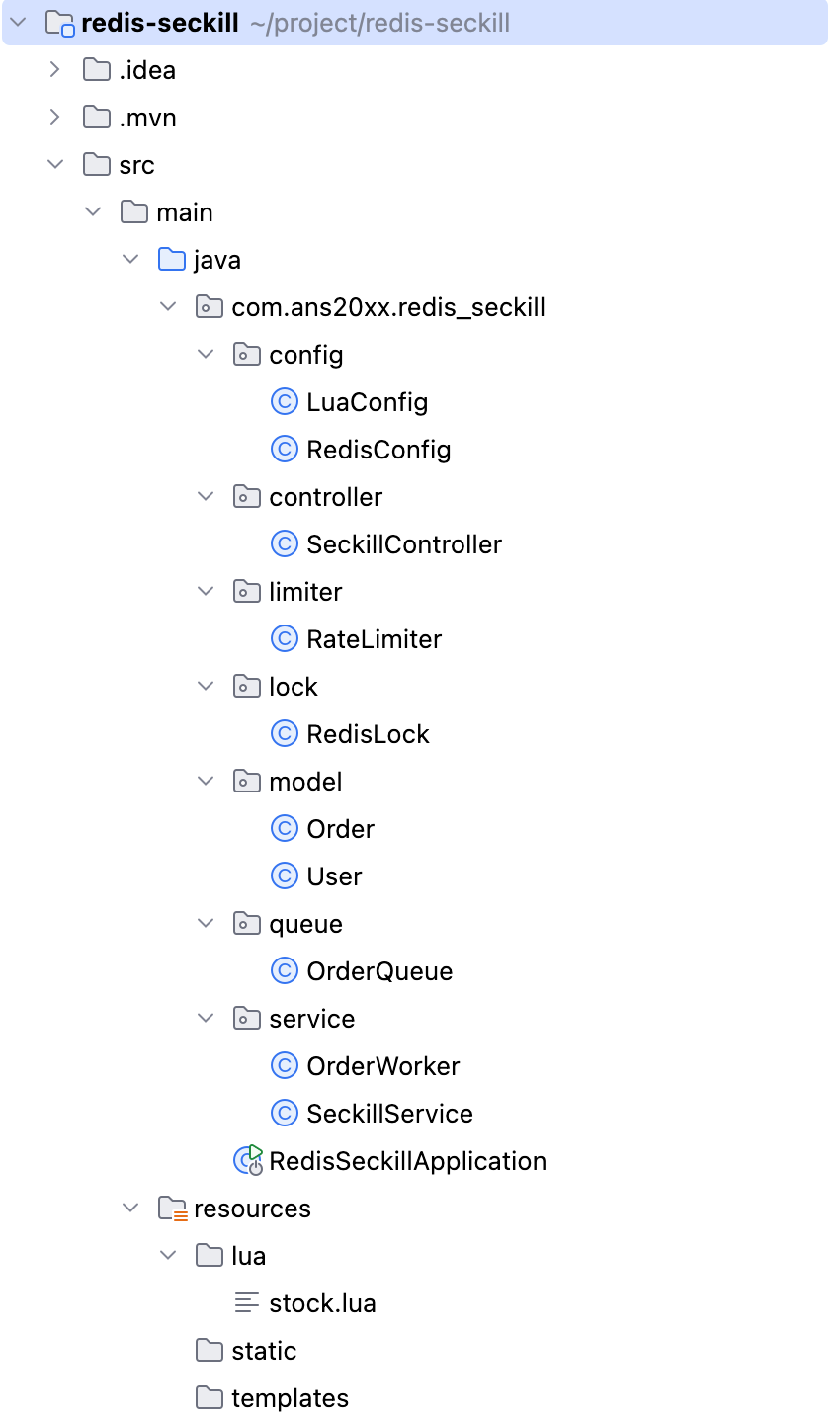

      • 项目结构
      • 库存扣减

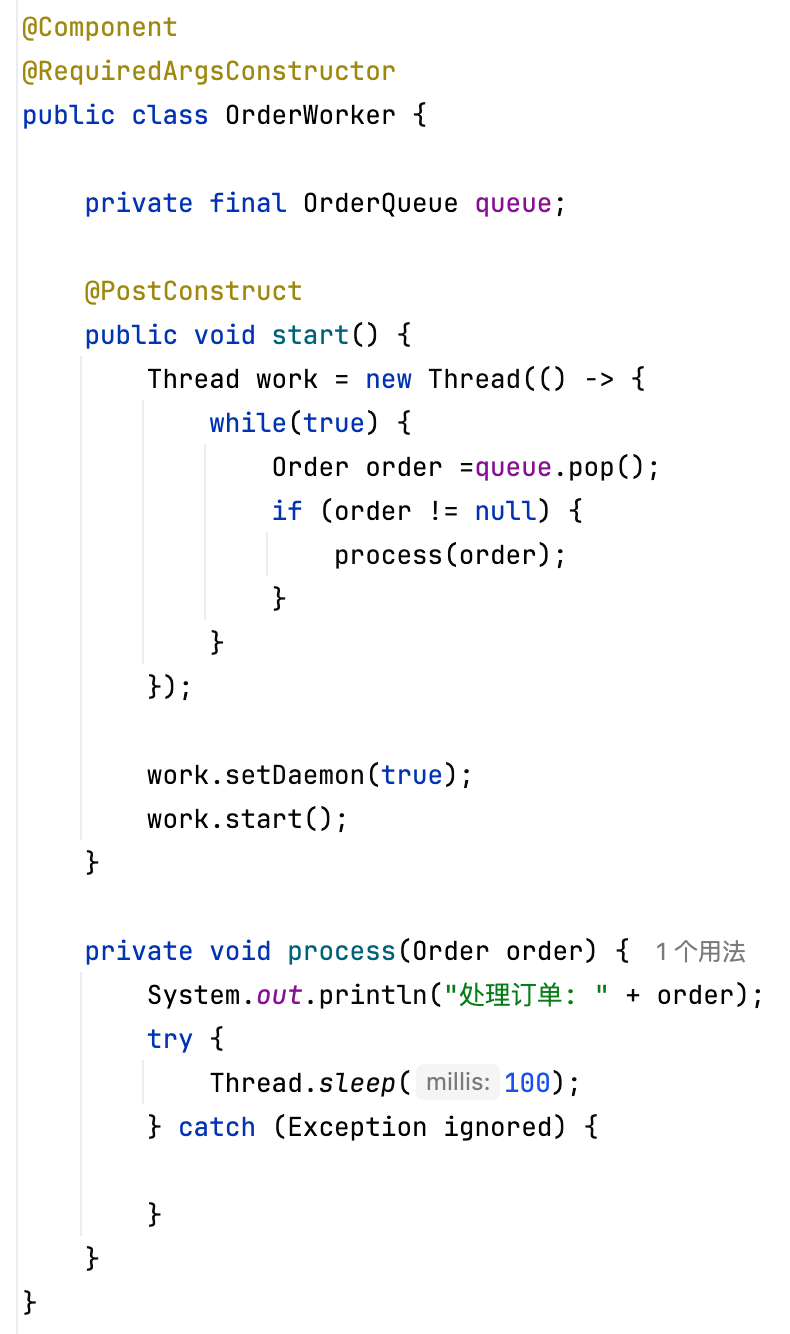

      • 消息队列
      • 分布式锁
      • 限流

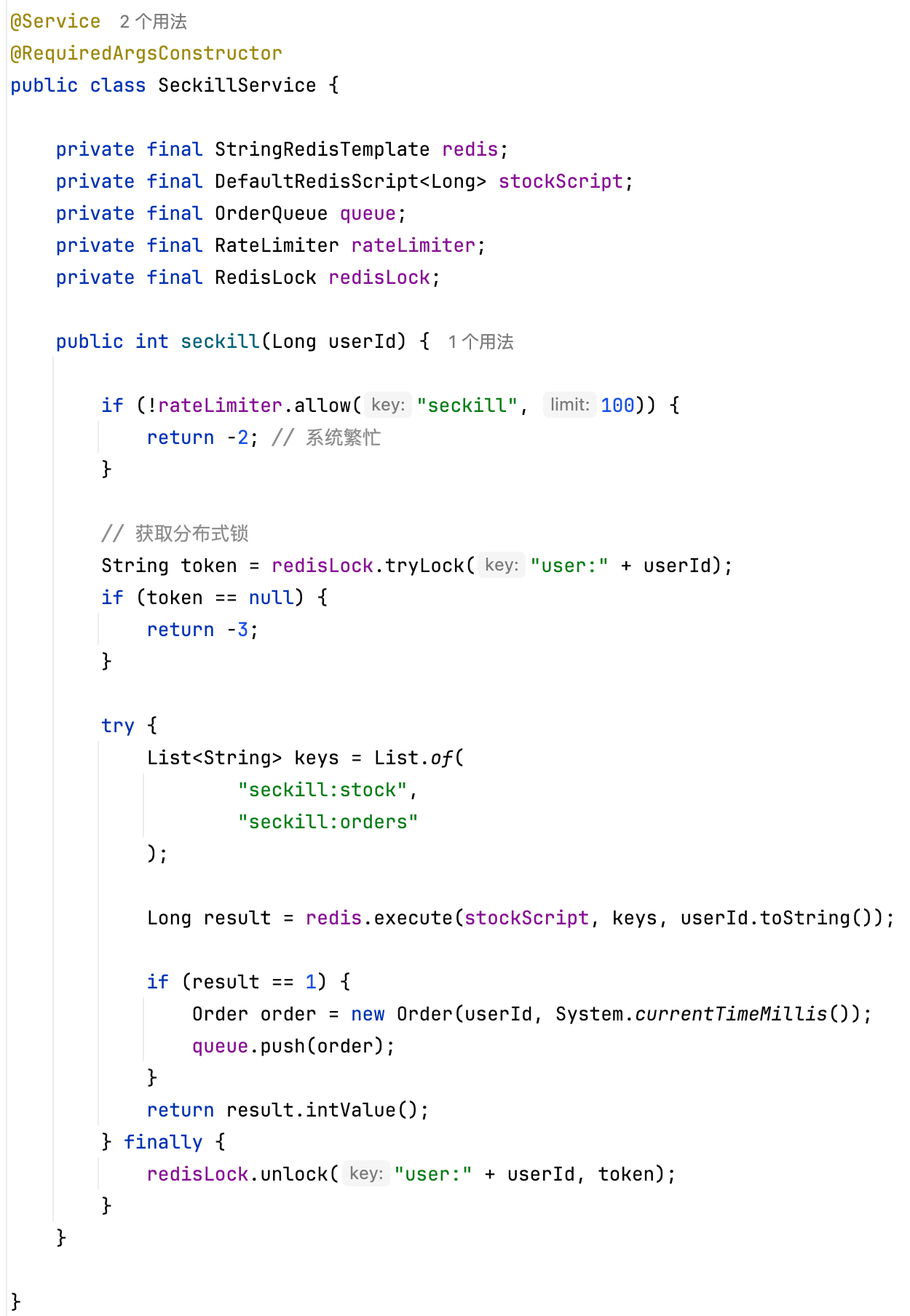

      • service
      • controller
      • 压测测试
        • ab -n 1000 -c 200 http://localhost:8080/seckill/1
      • 进阶

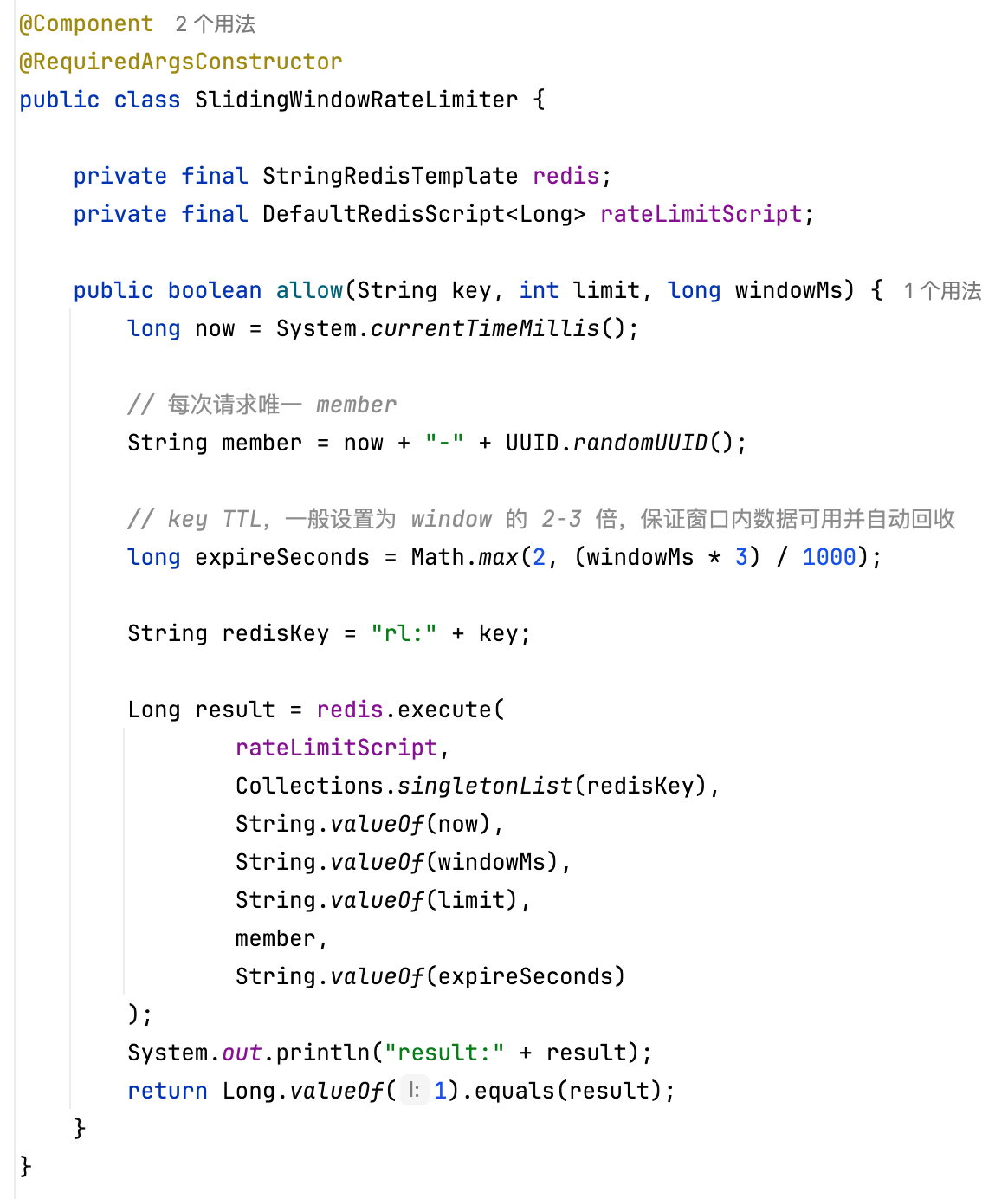

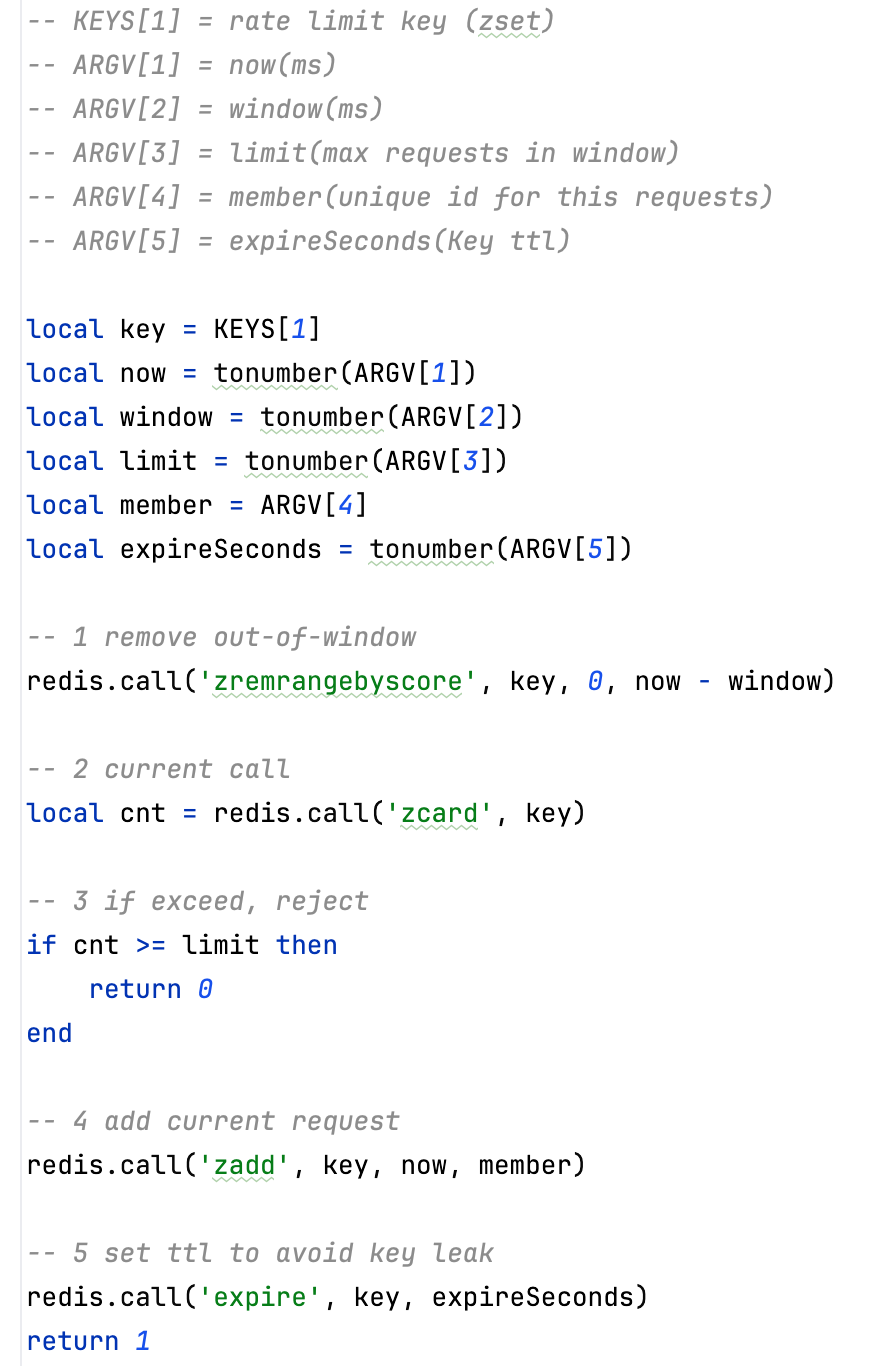

        • 滑动窗口限流

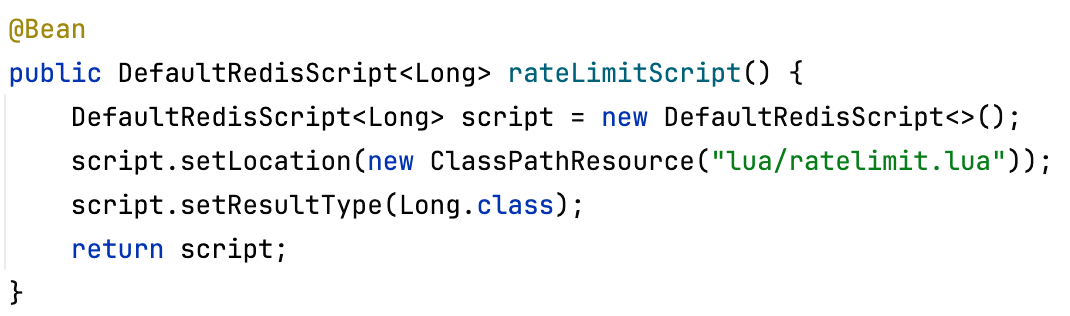

          • lua
          • service

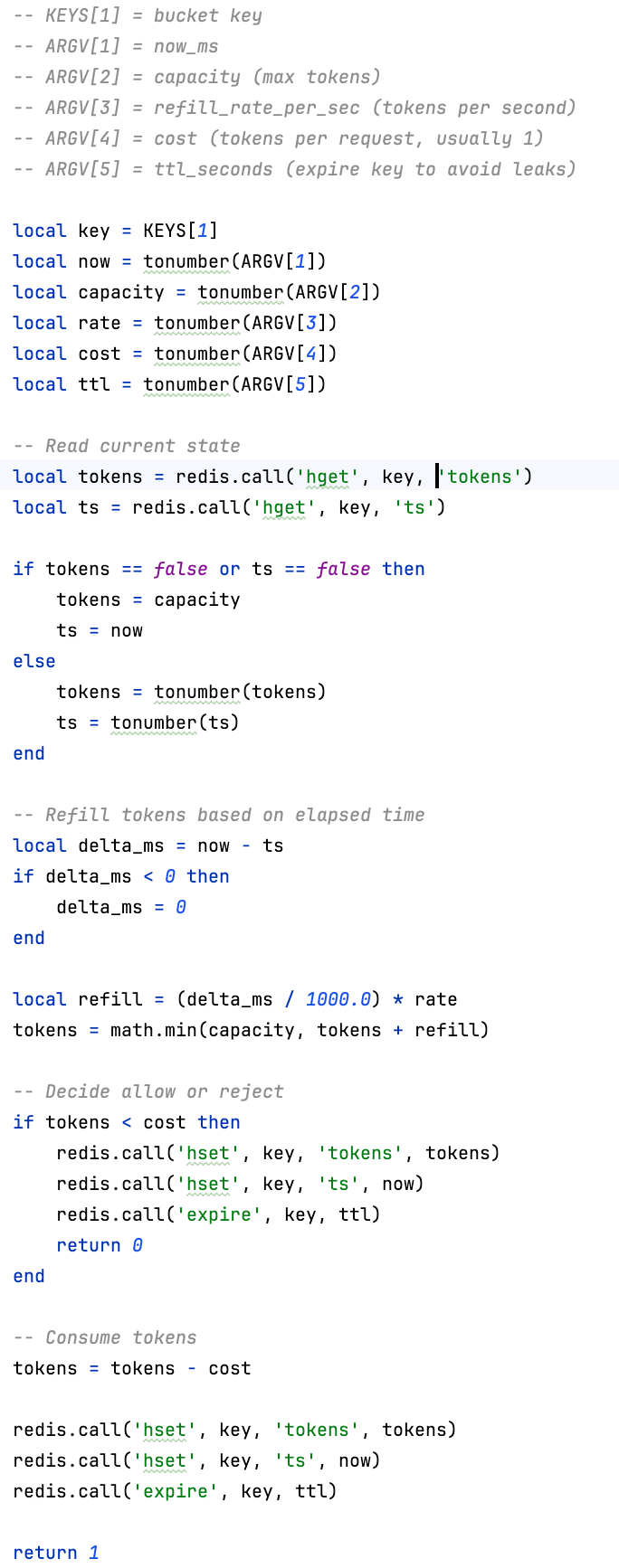

        • 令牌桶
          • lua
    • 持久化
      • RDB(快照)
        • 机制：周期性生成内存快照文件 dump.rdb
        • 优点：恢复快、文件紧凑
        • 缺点：可能丢失最近一次快照之后的数据
        • 关键点：fork 触发 COW，会带来短暂的延迟和额外内存占用
      • AOF(追加日志)
        • 机制：写命令追加到 appendonly.aof
        • 刷盘策略
          • appendfsync always：每条都写 fsync，最安全最慢
          • everysec：每秒 fsync，最常用，最多丢 1s
          • no：交给 OS，风险高
        • AOF 重写：压缩日志，避免无限膨胀
      • 混合持久化
        • AOF 前半段是 RDB 快照，后半段是增量 AOF
      • 实验一：只开 RDB，模拟宕机恢复
        • 只启用 RDB 快照

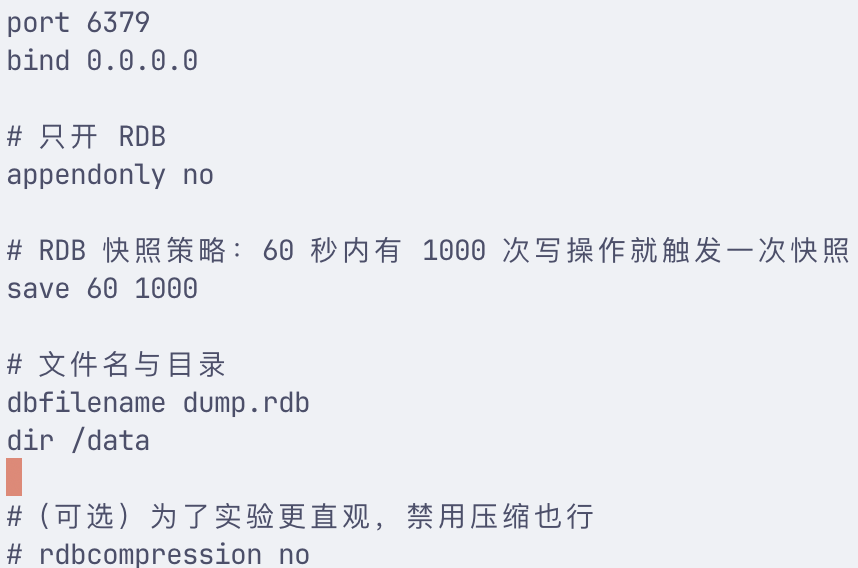

        • 编写配置文件 redis-rdb.conf

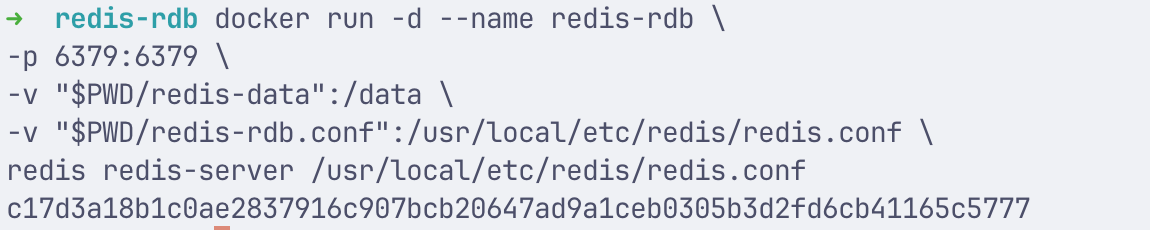

        • 启动 redis 容器
          • mkdir -p ./redis-data
          • docker rm -f redis-rdb 2>/dev/null
          • 验证 docker logs redis-rdb –tail 20
        • 进入容器
          • docker exec -it redis-rdb redis-cli

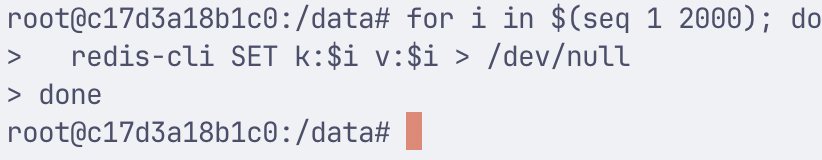

        • 写入大量数据

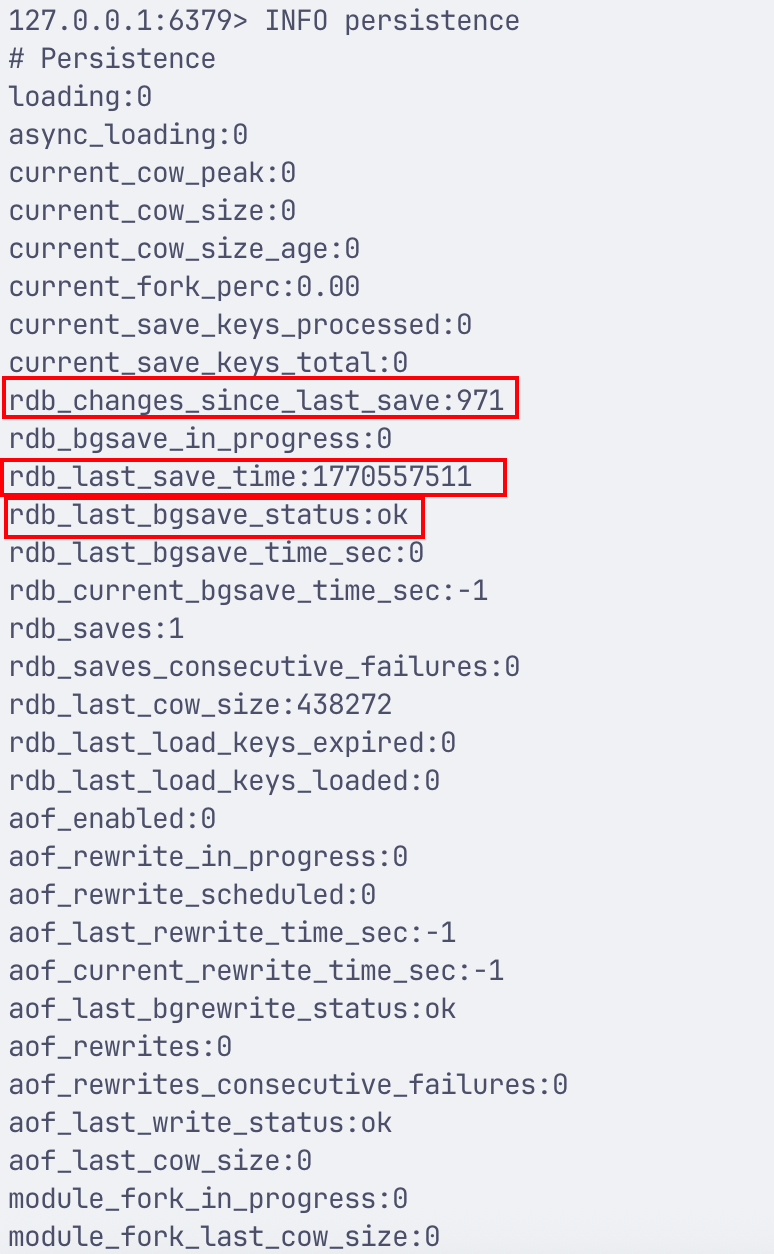

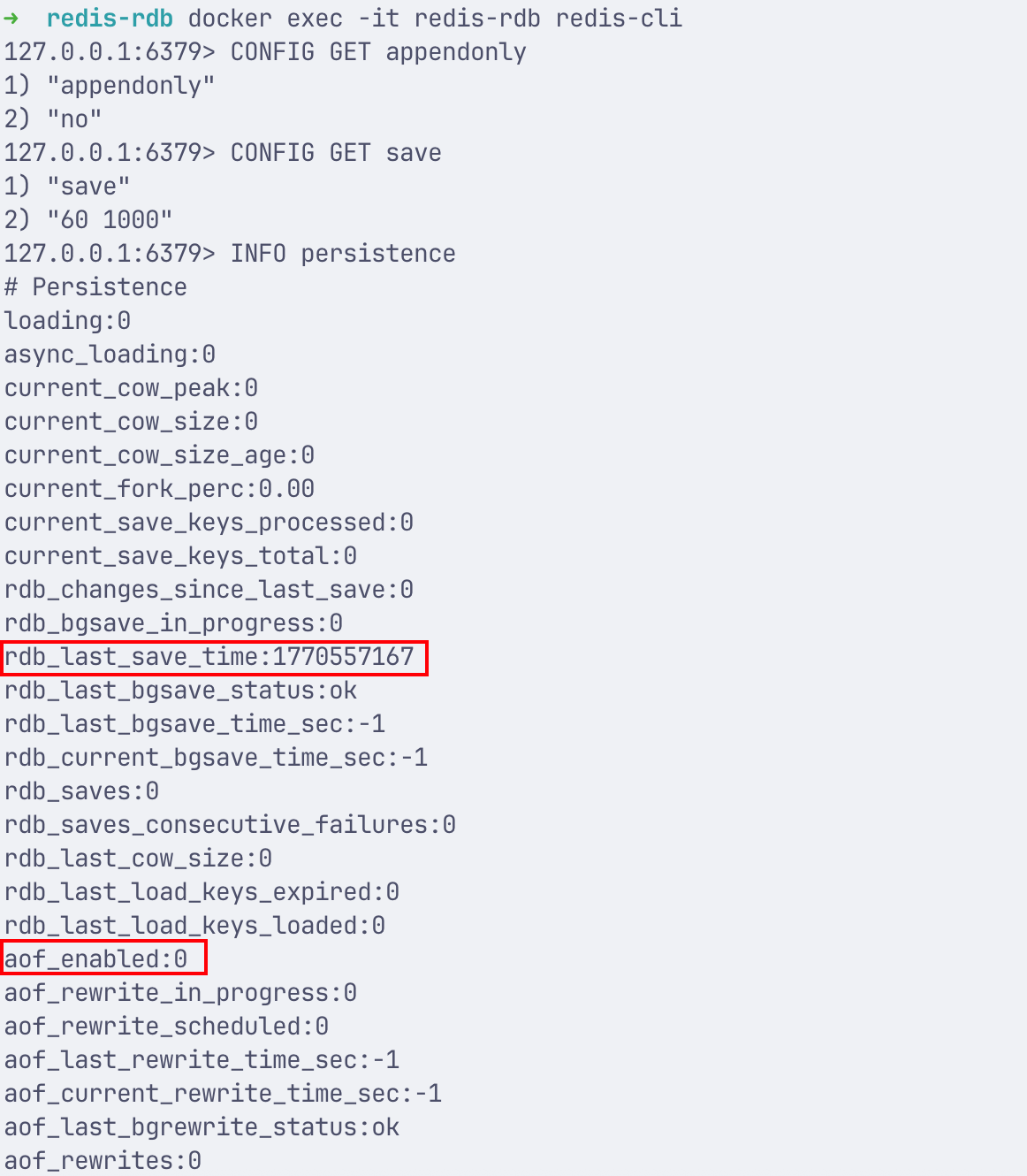

        • 观察 persistence
        • 手动触发 BGSAVE

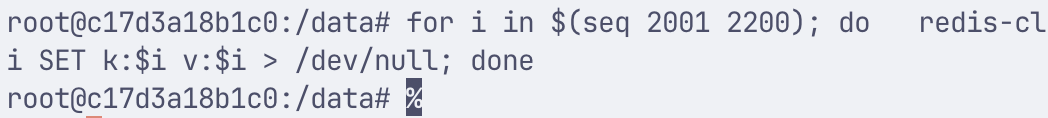

        • 制造快照后的新增数据（丢失窗口）
        • 强制宕机
          • docker kill -s KILL redis-rdb

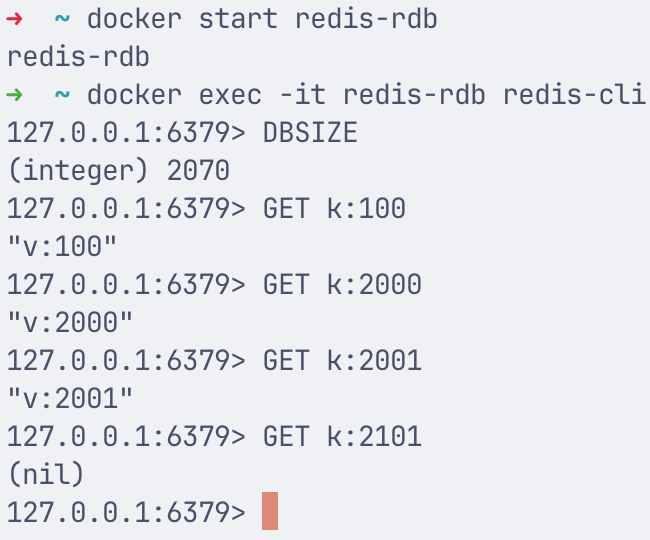

        • 重启 redis
          • docker start redis-rdb

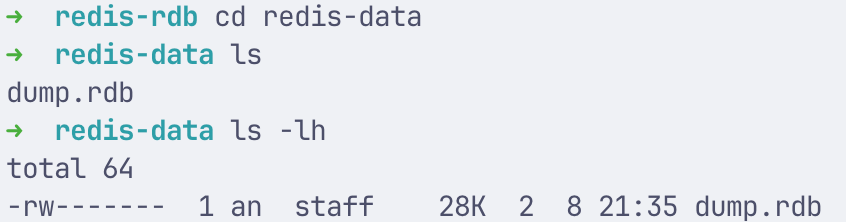

        • 验证 rdb 文件
      • 实验 2：只开 AOF，验证刷盘策略差异
        • 清理旧容器和目录
          • docker rm -f redis-aof 2>/dev/null
          • rm -rf ./redis-aof-data

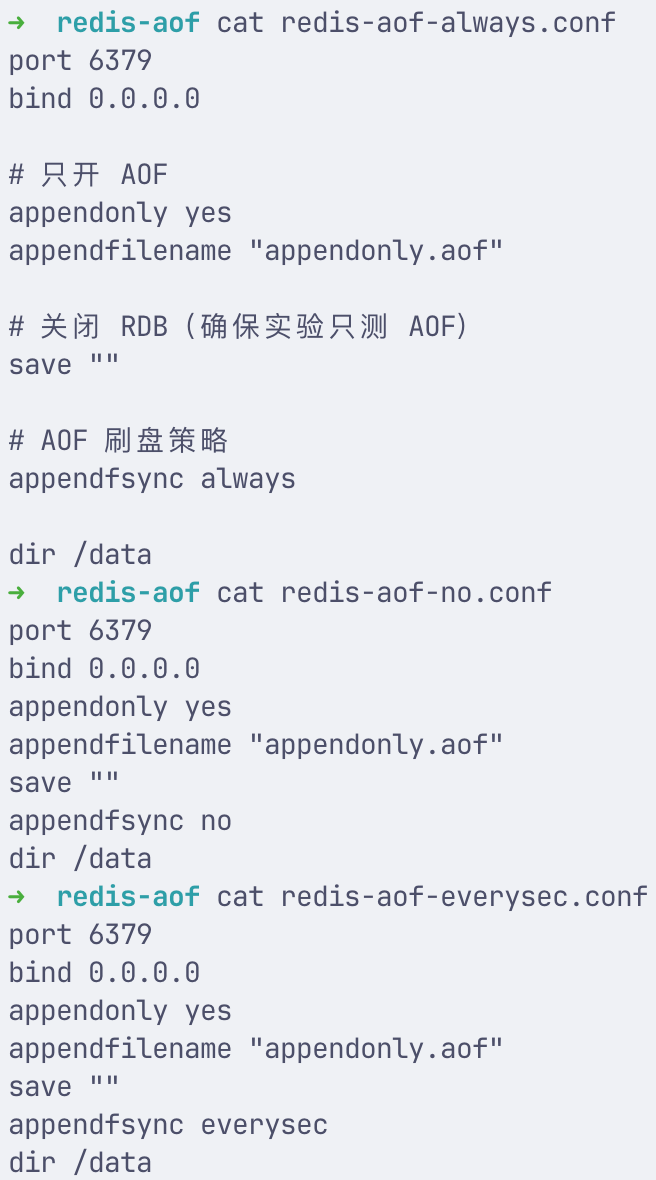

        • 准备三份配置

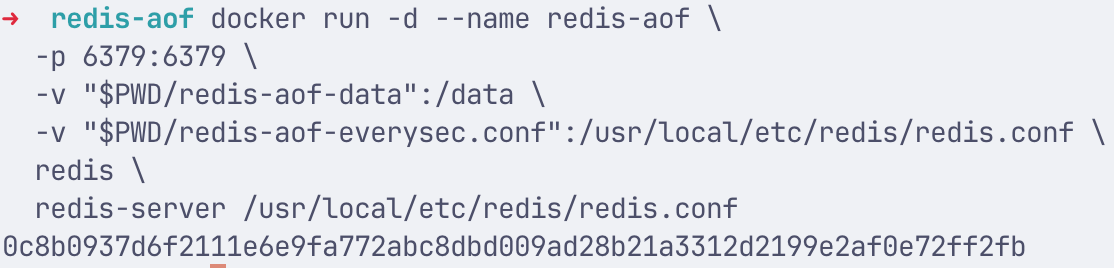

        • 清空数据&启动 redis

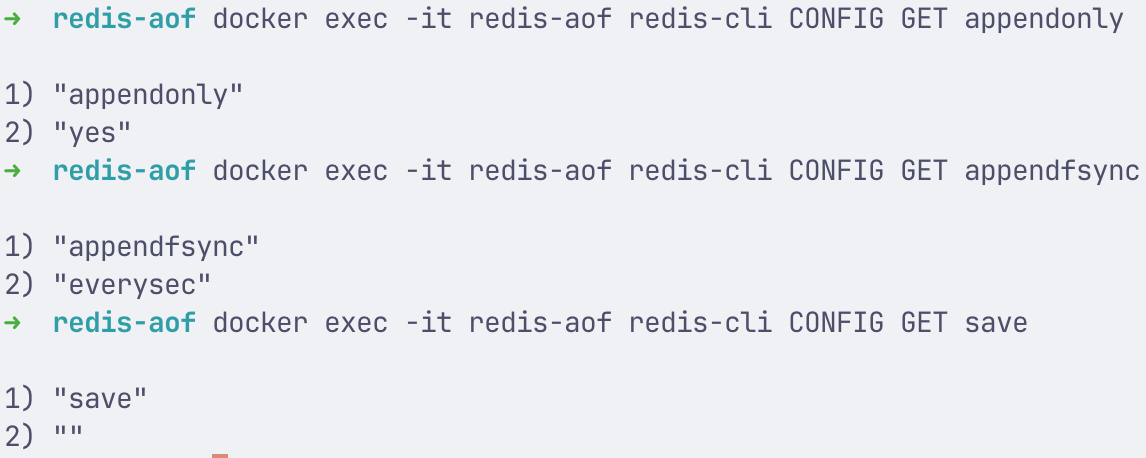

        • 检查 AOF 开启

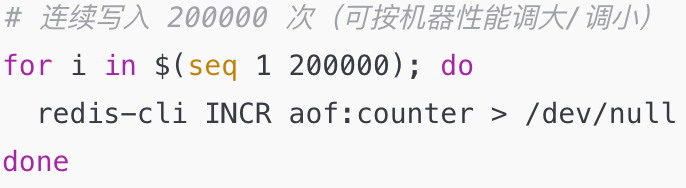

        • 写入负载 + 强制关闭
          • docker kill -s KILL redis-aof
        • 重启 Redis
          • docker start redis-aof
        • 查看计数
      • 实验 3：AOF rewrite 触发与观测
        • auto-aof-rewrite-percentage 100
        • auto-aof-rewrite-min-size 64mb
    • 主从复制
      • 目的：读扩展、数据冗余、高可用
      • 全量复制：第一次同步或者 backlog 不够时
      • 增量复制(PSYNC)：短线重连后从 backlog 补差异
      • 实验 1：搭主从并验证数据一致

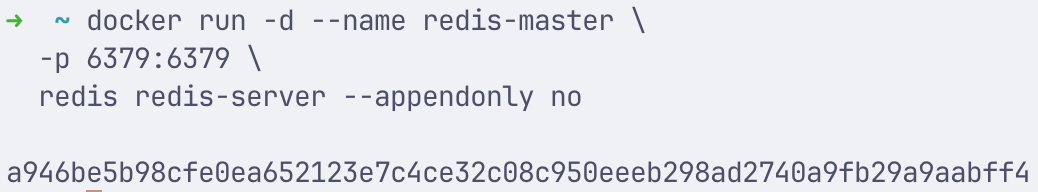

        • 启动 Master
        • 启动 Replica
          • 创建并加入网络
            • docker network create redis-net 2>/dev/null
            • docker network connect redis-net redis-master

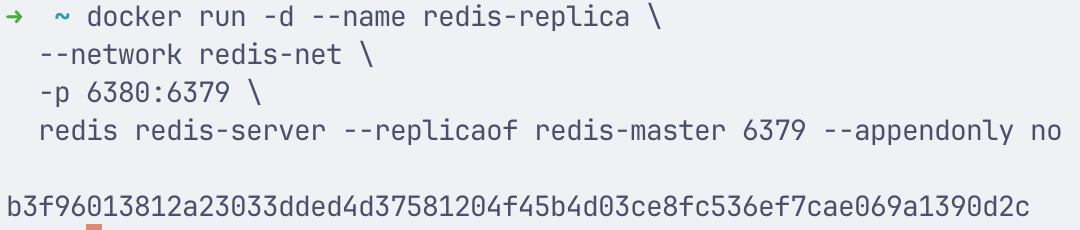

          • 启动 replica 并加入网络

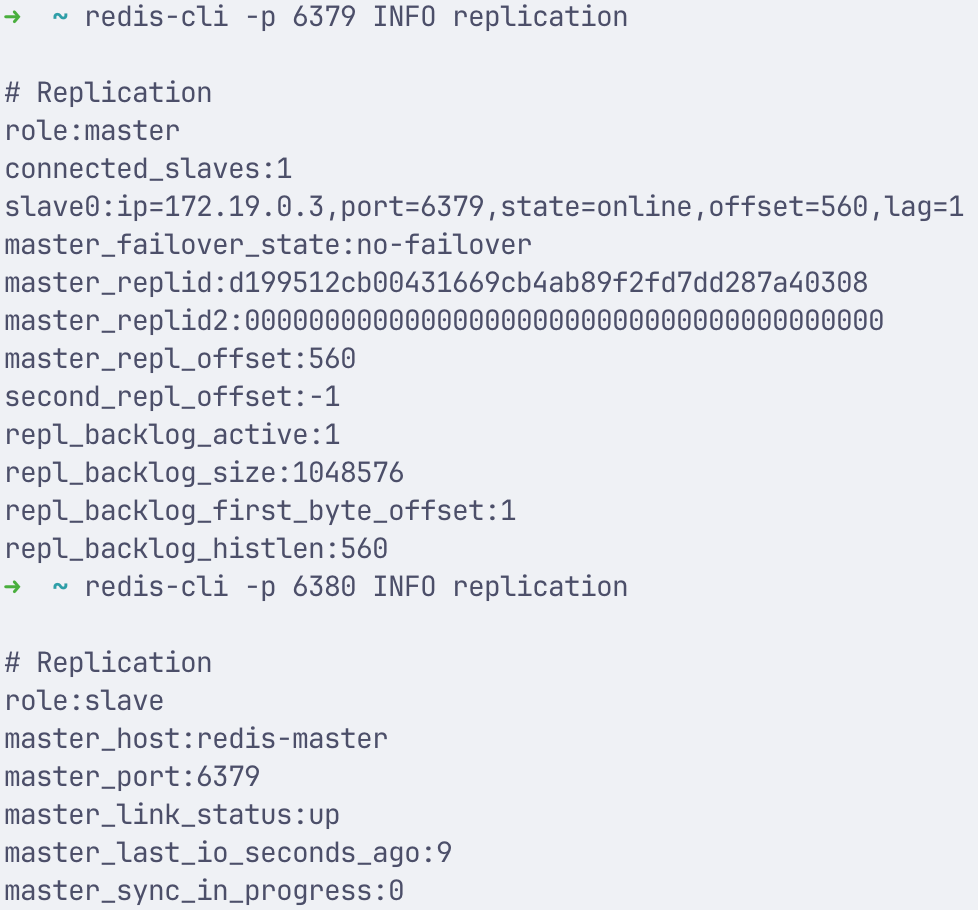

          • 查看复制状态
          • 验证数据一致性

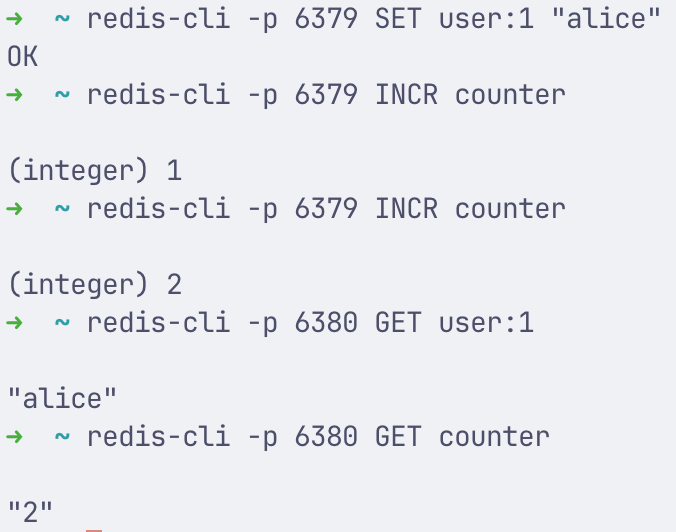

            • 主库写入 + 从库读取

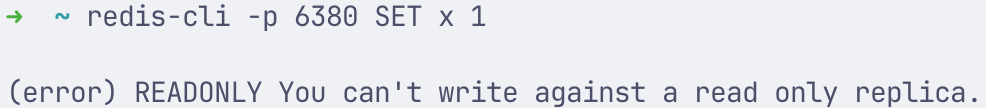

          • 验证从库默认只读

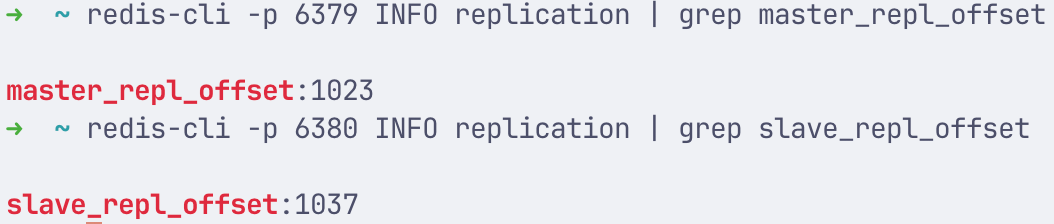

          • 查看复制延迟
          • 排障 INFO replication
    • 哨兵 Sentinel (高可用)
      • 目的：监控、选主、故障转移、通知客户端
      • 核心：主观下线、客观下线、选举与 failover
      • 客户端连接地址：不用写死 master 地址，而是通过哨兵获取当前 master
      • 实验：搭建 1 主 2 从+ 3 Sentinel
        • 准备目录
          • mkdir -p redis-sentinel-lab/{conf,data}
        • 准备 Redis 配置

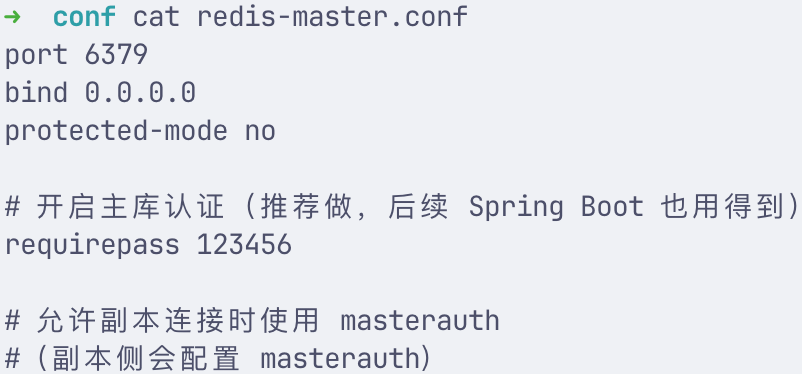

          • master 配置

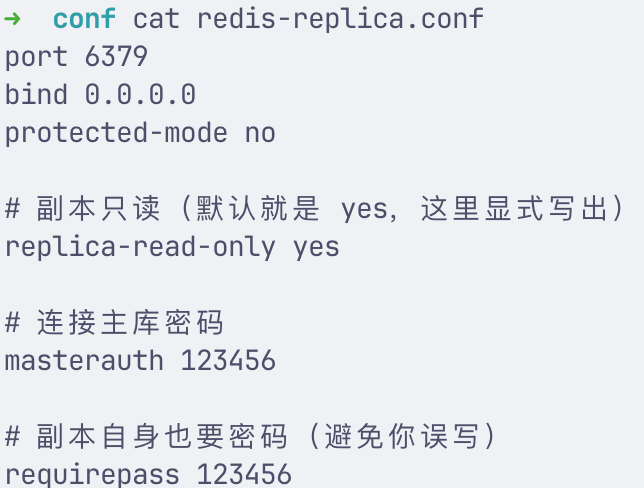

          • replica 配置

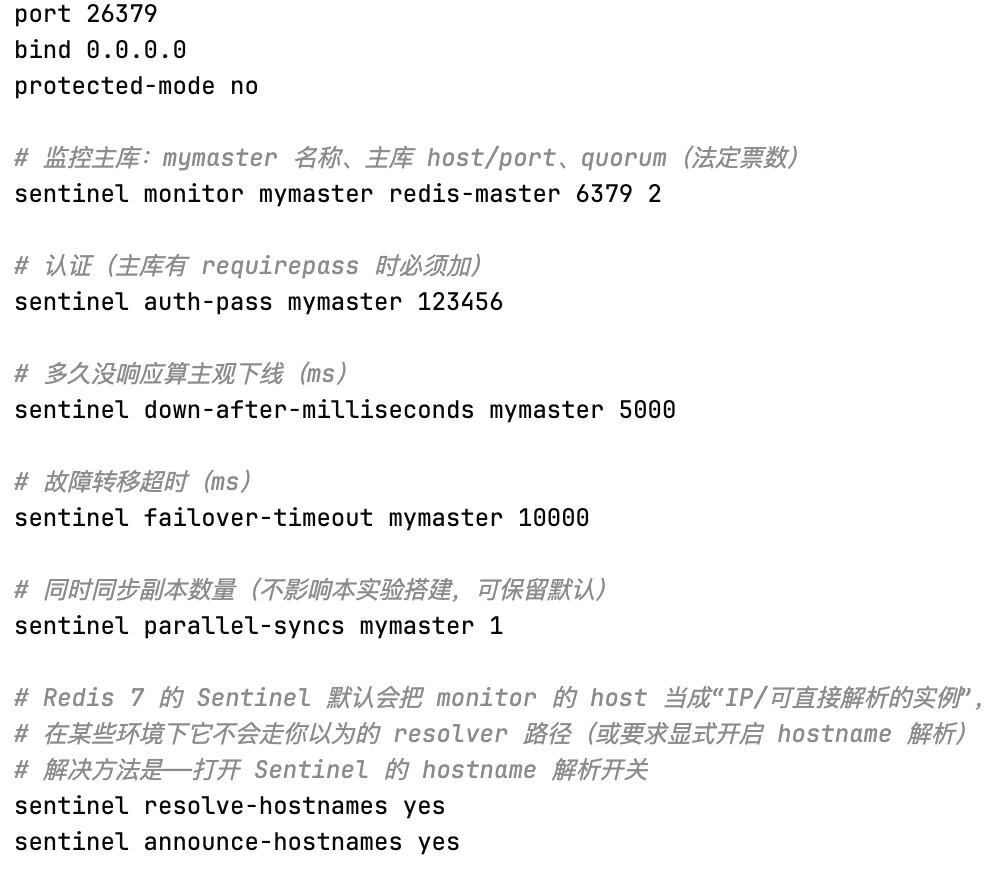

          • sentinel 配置
            • quorum 2：3 个 sentinel 里至少 2 个认为 master 有问题，才会进入客观下线/转移流程
            • down-after-milliseconds：5s 没有响应就 SDOWN。

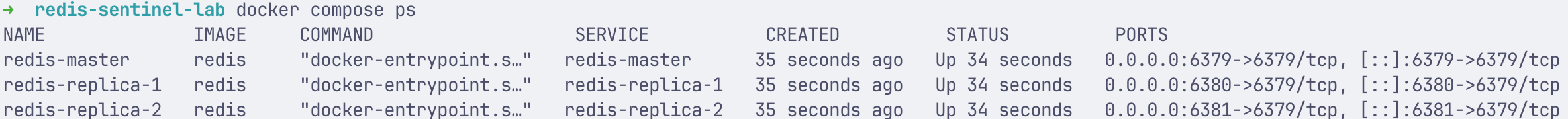

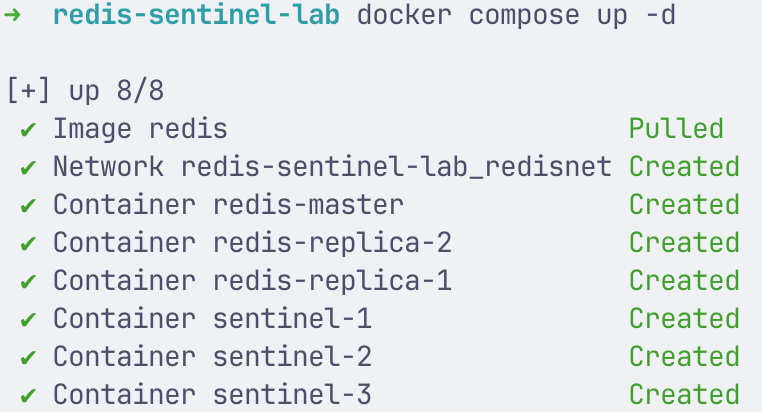

          • docker-compose 启动

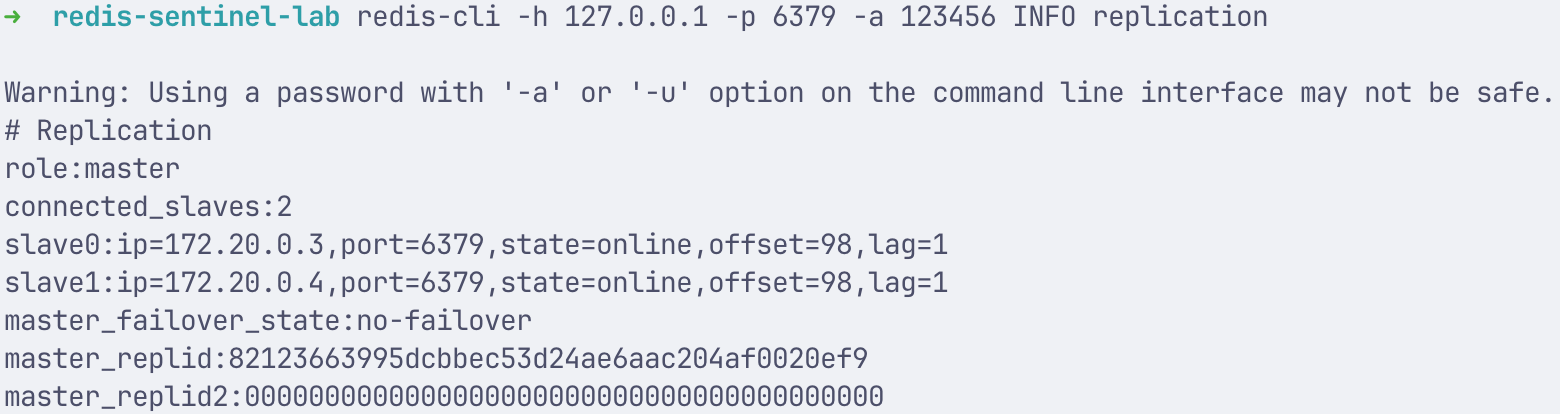

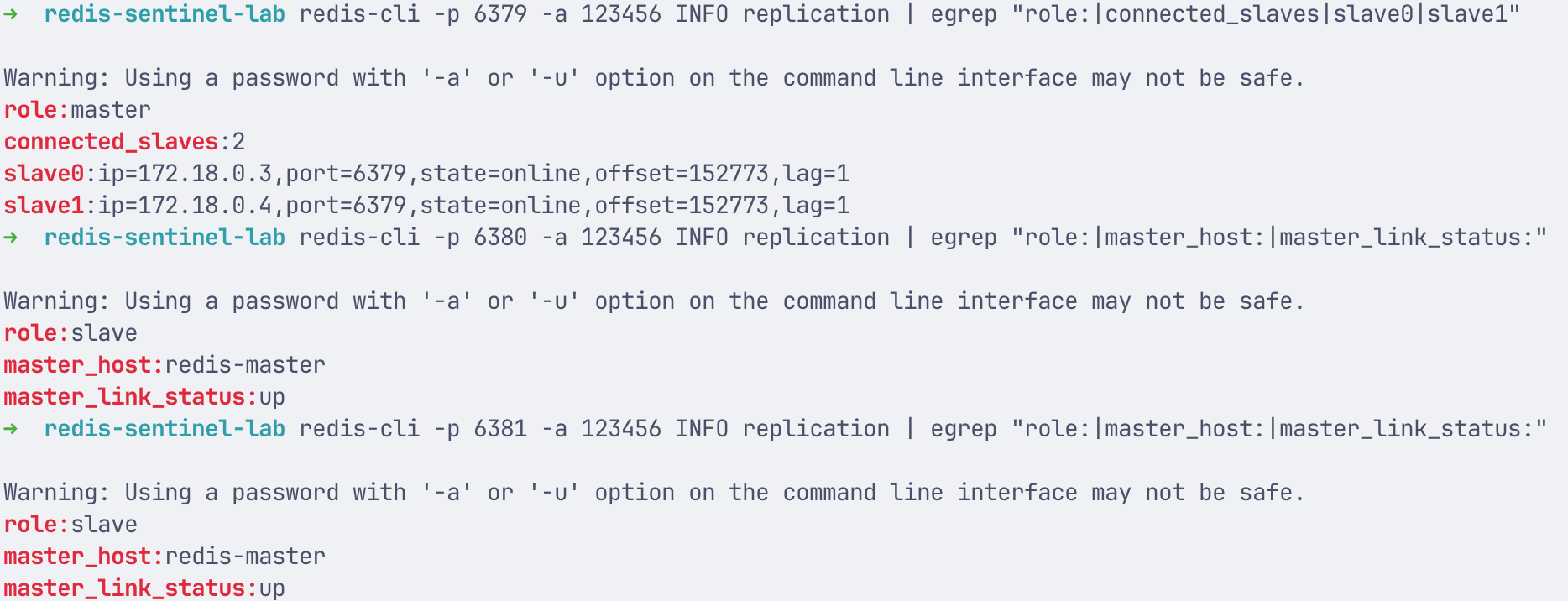

          • 验证主从复制
            • redis-cli -h 127.0.0.1 -p 6379 -a 123456 INFO replication
            • redis-cli -h 127.0.0.1 -p 6380 -a 123456 INFO replication
            • redis-cli -h 127.0.0.1 -p 6381 -a 123456 INFO replication

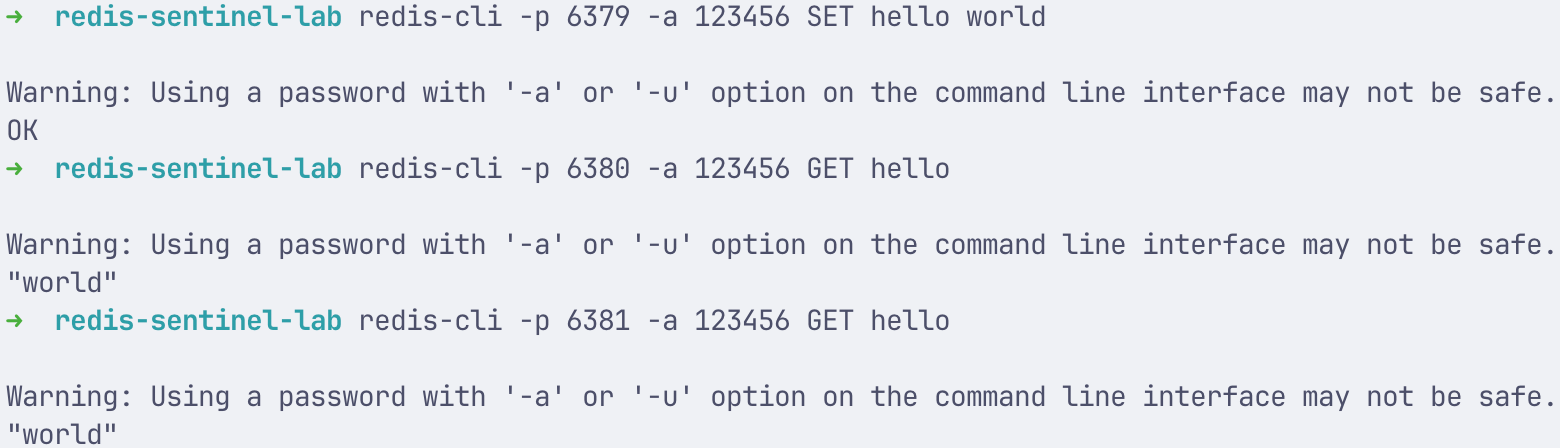

          • 验证写主从一致性

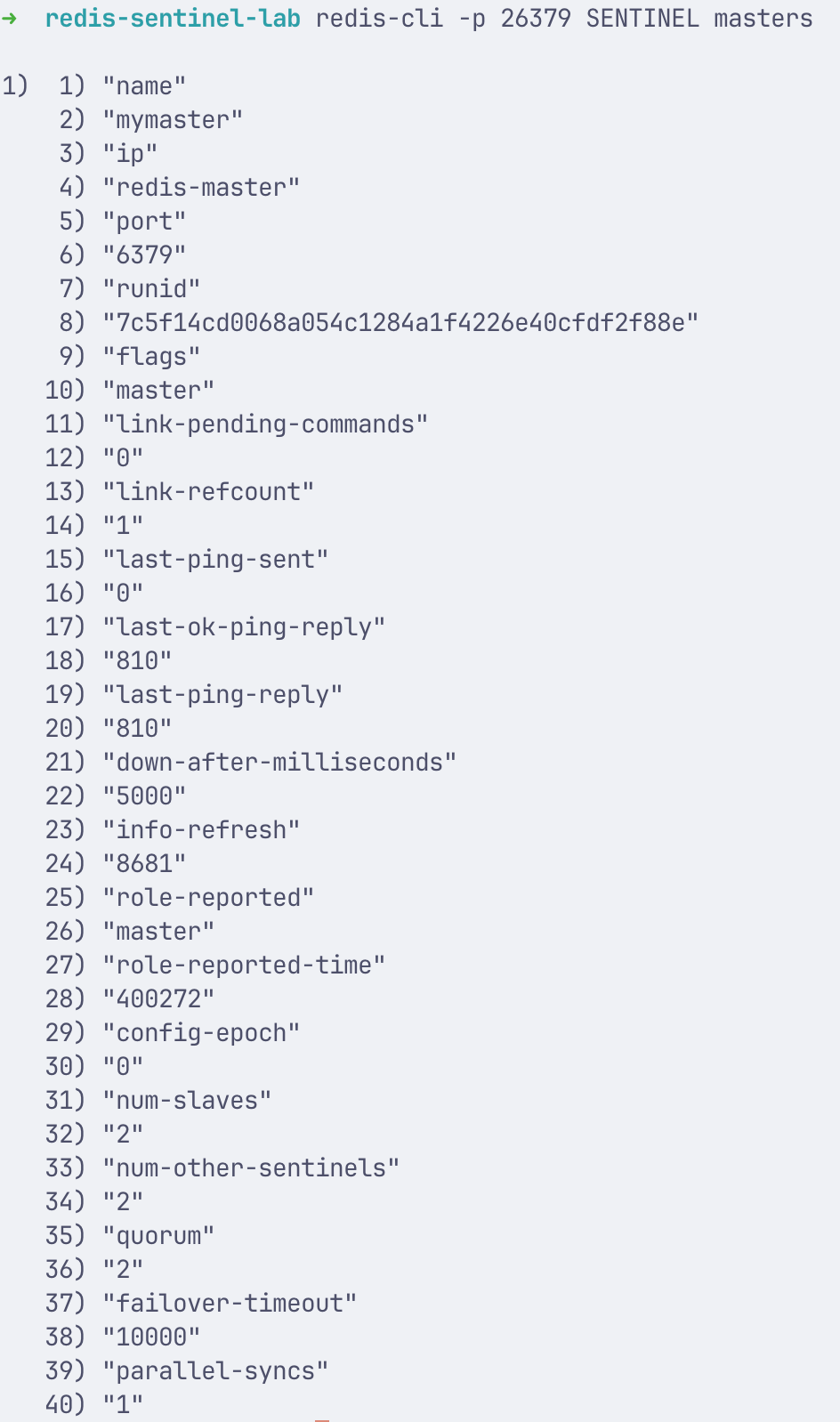

          • 验证 Sentinel 监控是否生效
            • 查看主库信息 redis-cli -p 26379 SENTINEL master mymaster
            • 查看从库信息 redis-cli -p 26379 SENTINEL slaves mymaster
      • 实验：故障演练
        • 写入测试数据，验证切主后数据仍然可写
        • 观察主从拓扑

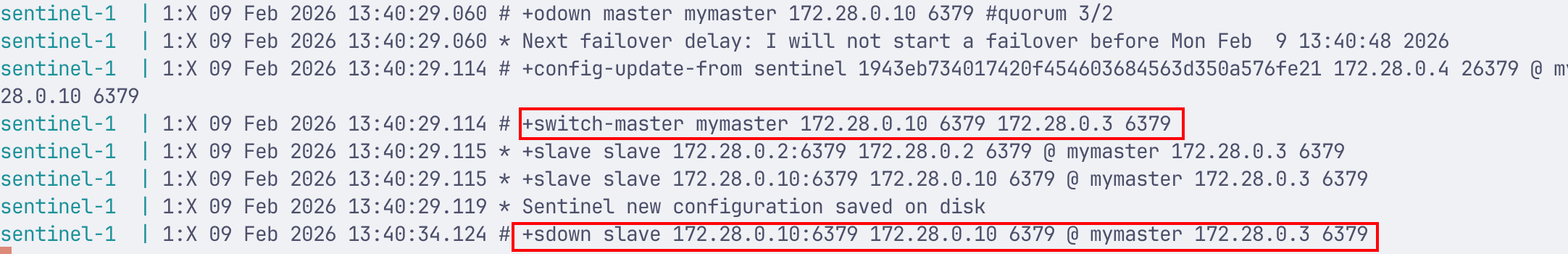

        • 查看 Sentinel 实时日志
          • docker compose logs -f –tail 200 sentinel-1
        • 模拟主库宕机
          • docker kill -s KILL $(docker compose ps -q redis-master)
        • 等待故障转移完成（5-15s）

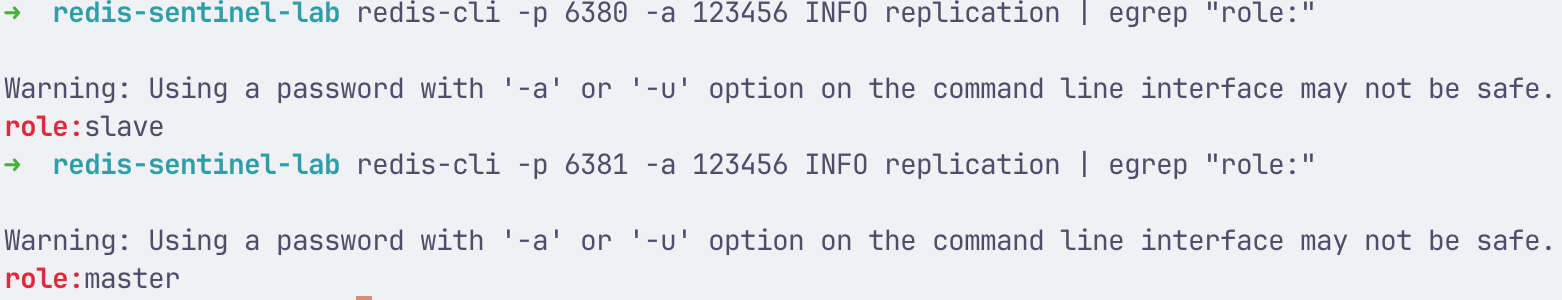

        • 确定新 master
        • 验证其中一个哪个变成 master

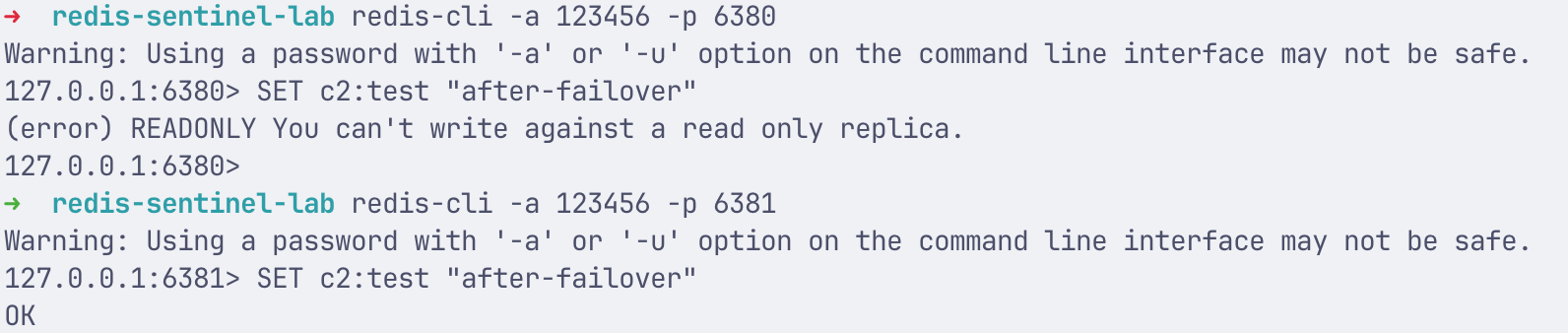

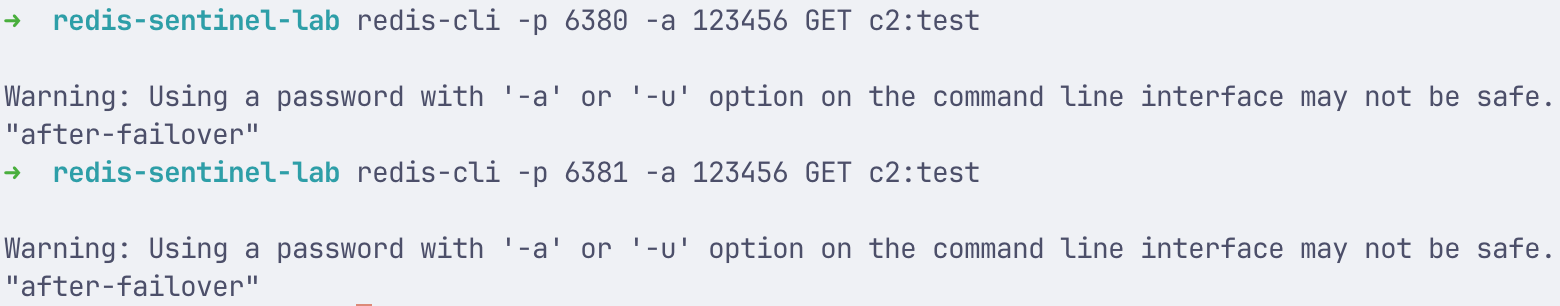

        • 验证切主后仍然可写

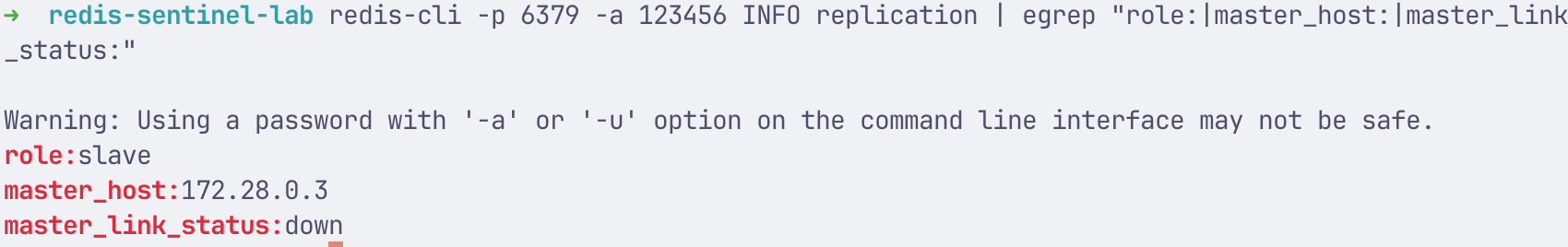

        • 启动旧 master
          • docker compose up -d redis-master
          • 旧 master 变成 slave
        • 最终一致性验证
      • 实验：SpringBoot 无感切主
        • 验证 Sentiel 当前 master

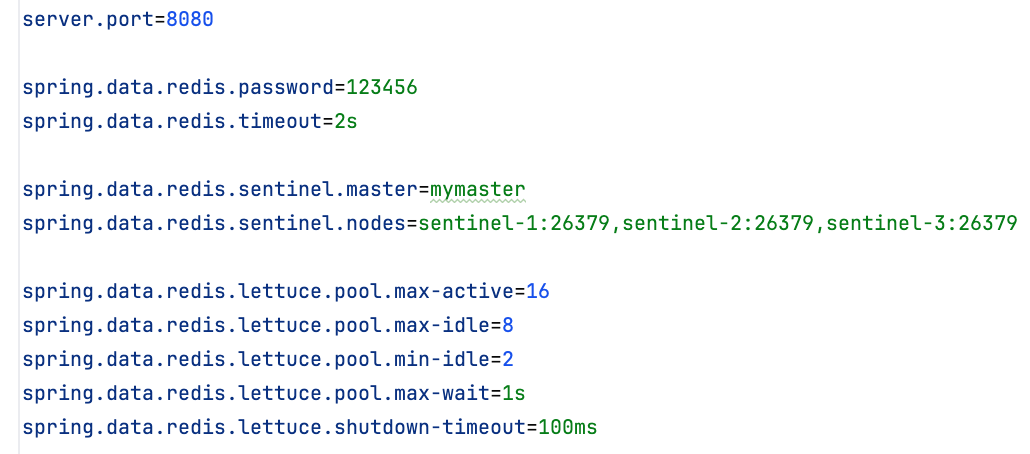

        • 配置 Sentinel 连接

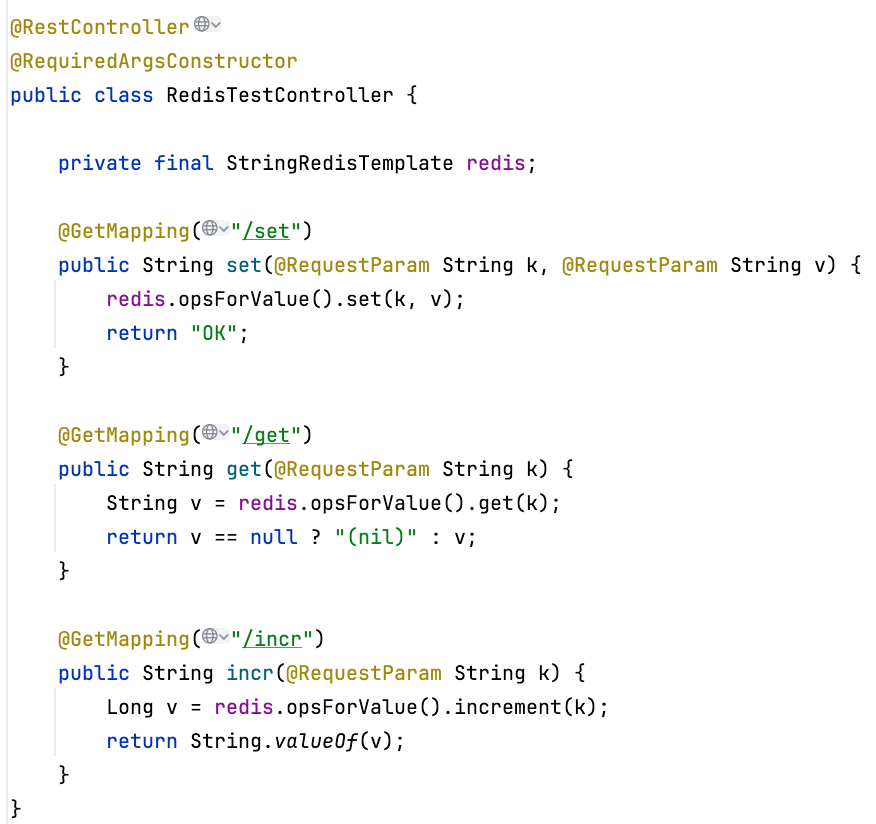

        • 编写 Controller 验证读写

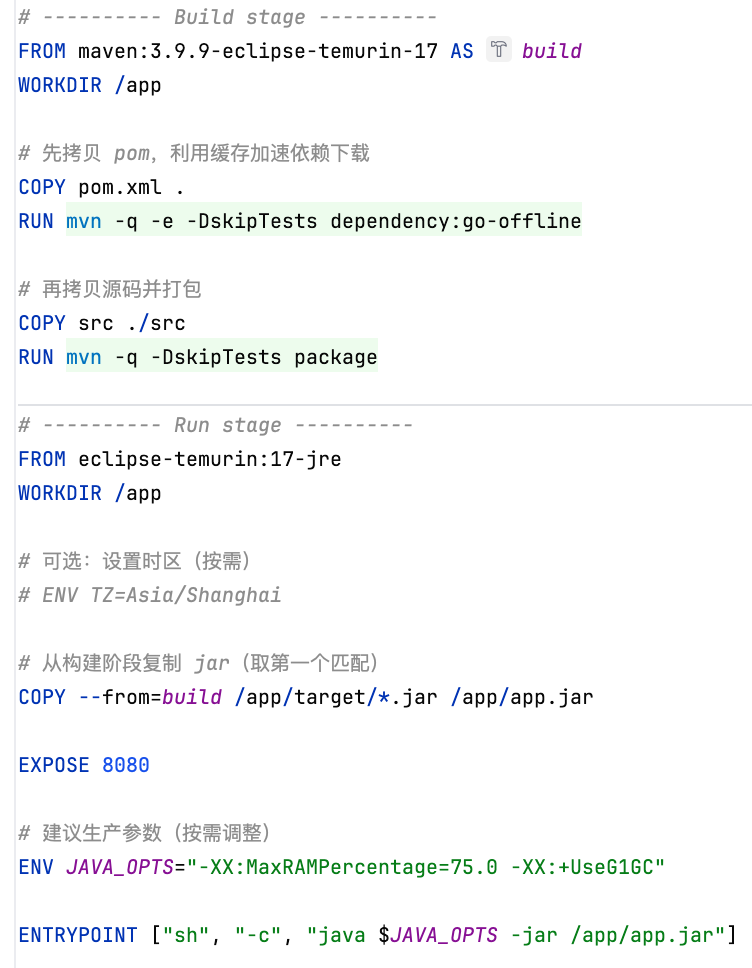

        • 构建镜像
          • docker build -t redis-demo .

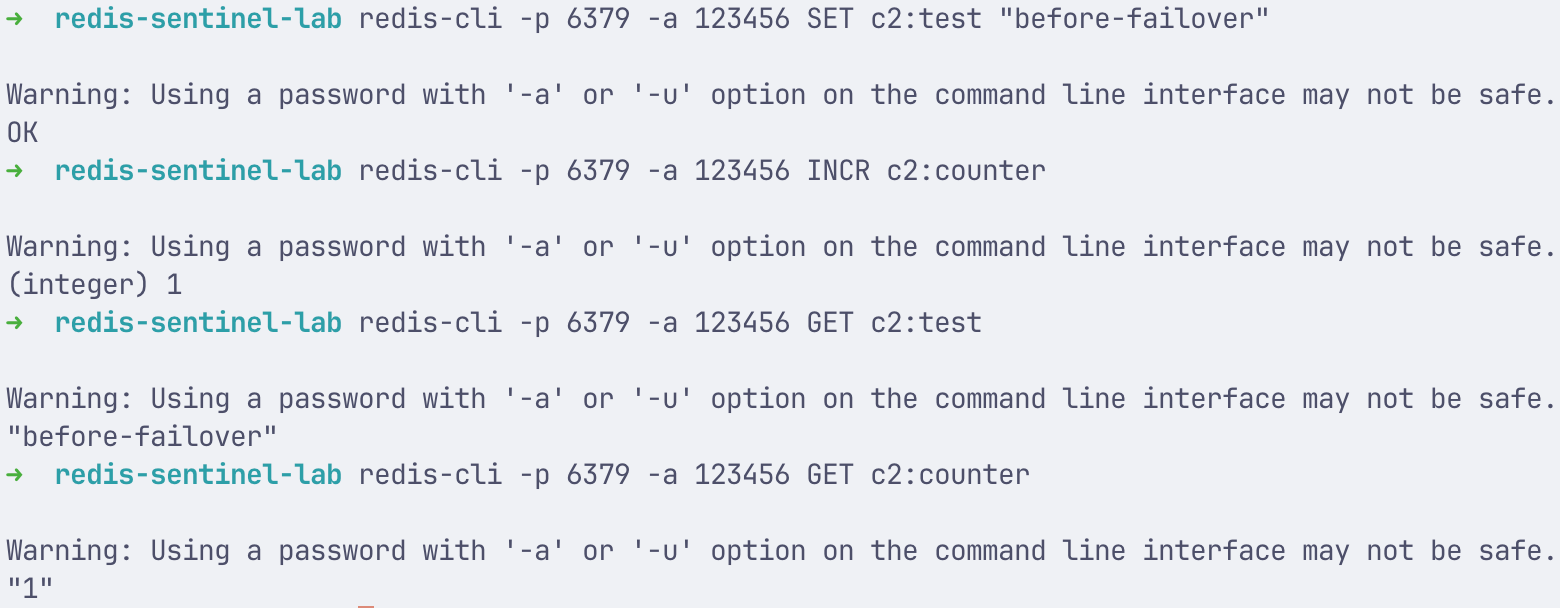

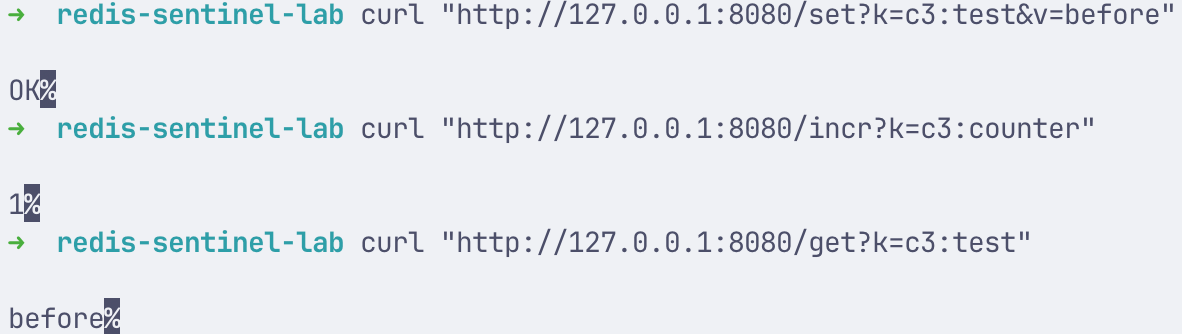

        • 切主前写入
        • 模拟主库宕机
          • docker kill -s KILL $(docker compose ps -q redis-master)

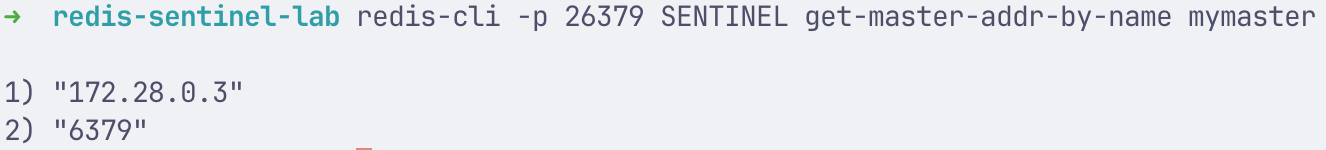

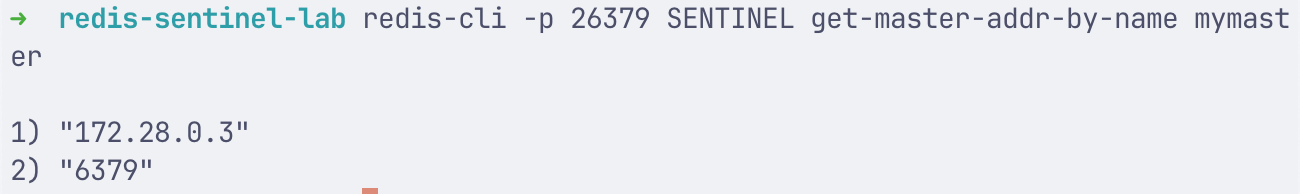

          • 观察 sentinel 选主
          • redis-cli -p 26379 SENTINEL get-master-addr-by-name mymaster
    • 内存管理

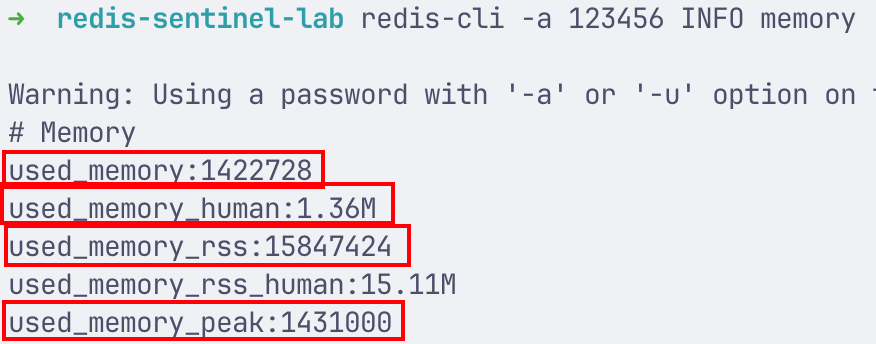

      • INFO memory
        • used_memory: Redis 实际分配的内存
        • used_memory_human：人类可读的内粗
        • used_memory_rss：进程在 OS 视角占用的物理内存
        • used_memory_peak：历史峰值
        • mem_fragmentation：碎片比 = rss/used_memory >= 2 碎片偏高 - 上限相关
        • maxmemory：代表你给 Redis 的硬上限，等于 0 代表未设置内存上限，Redis 会继续申请内存知道吃光资源，不会触发淘汰侧路
        • maxmemory-policy：代表 Redis 达到上限时怎么处理
      • 淘汰策略
        • allkeys-lfu （强烈推荐，缓存业务首选）
          • 所有 key 都可能被淘汰
          • 适合热点明显的缓存
        • allkeys-lru
          • 适合访问模式更均匀，有最近性的场景
        • volatile-ttl
          • 只淘汰带过期时间的 key
        • noeviction
          • 拒绝写入，适合强一致性
      • 实验：设置 maxmemory + 不同淘汰策略对比
        • 设置较小的 maxmemory
          • redis-cli -a 123456 CONFIG SET maxmemory 10mb

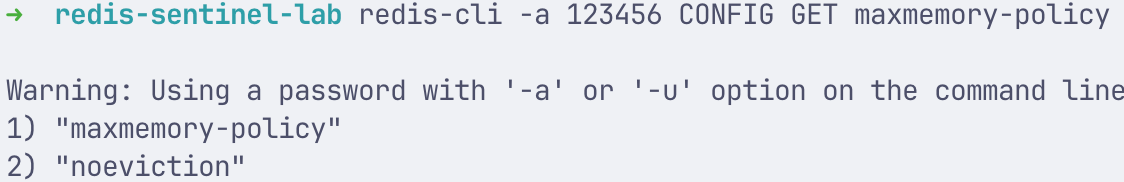

        • 测试策略
          • redis-cli -a 123456 FLUSHDB
          • redis-cli -a 123456 CONFIG SET maxmemory-policy noeviction

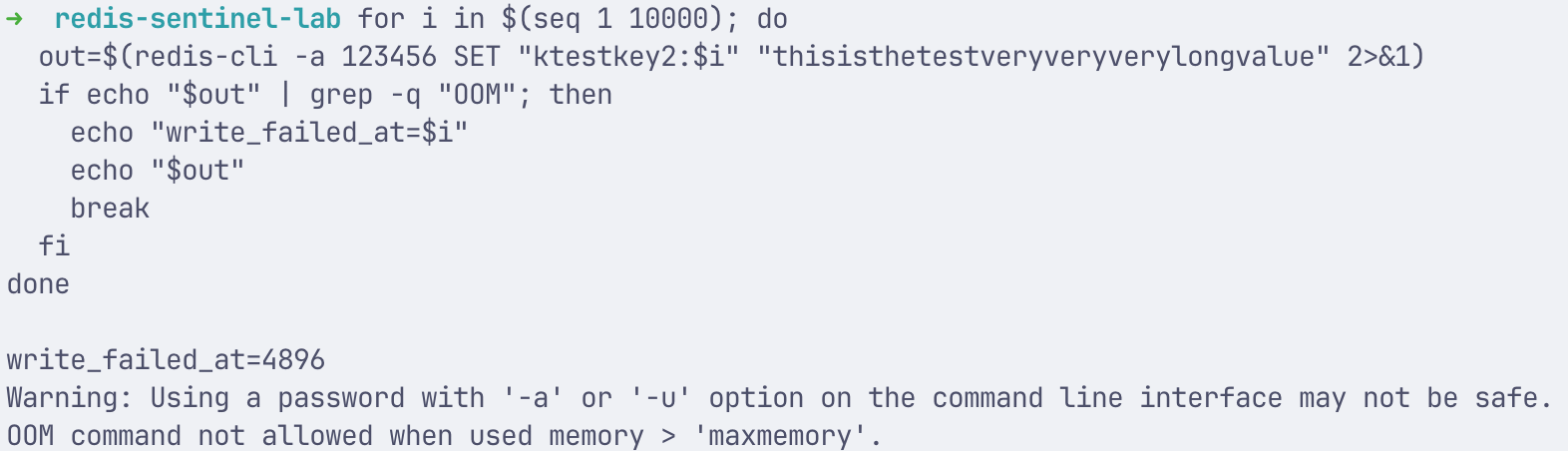

        • 持续写入大 value
        • 观察指标
          • redis-cli -a 123456 INFO stats | egrep “evicted_keys|keyspace_hits|keyspace_misses”
          • redis-cli -a 123456 INFO memory | egrep “used_memory_human|maxmemory_human|mem_fragmentation_ratio”
      • 实验：LFU vs LRU 对热点的保护效果
        • 目标：构造一个热点 key 与大量冷 key，验证 LFU 更能保护热点
        • 策略设置
          • redis-cli -a 123456 CONFIG SET maxmemory-policy allkeys-lfu
        • 写入热点 key
          • redis-cli -a 123456 SET hot “1”
        • 增加访问频率
          • for i in $(seq 1 20000); do redis-cli -a 123456 GET hot > /dev/null; done
        • 写入大量冷 key
        • 检查 hot 是否存在
      • 实验：内存碎片 fragmentation 观察与整理
        • 制造碎片
          • 反复创建/删除很多不同大小的 value
          • Hash/List 不断增长、缩小
        • 缓解手段
          • 避免频繁大幅变更 value 大小
          • 拆分 bigkey
          • 合理设置 maxmemory，预留空间
          • Redis 4+ 可以考虑 memory purge
      • 实验：BigKey 检测与治理

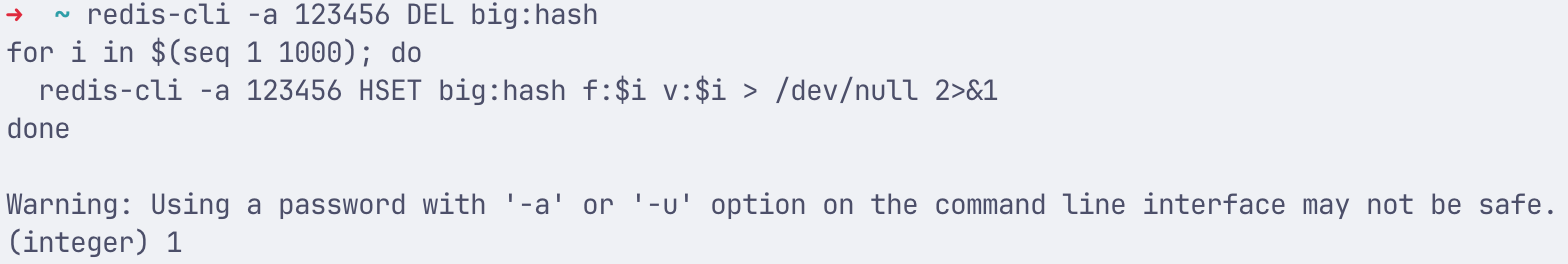

        • 构造 bigkey
        • 查看内存

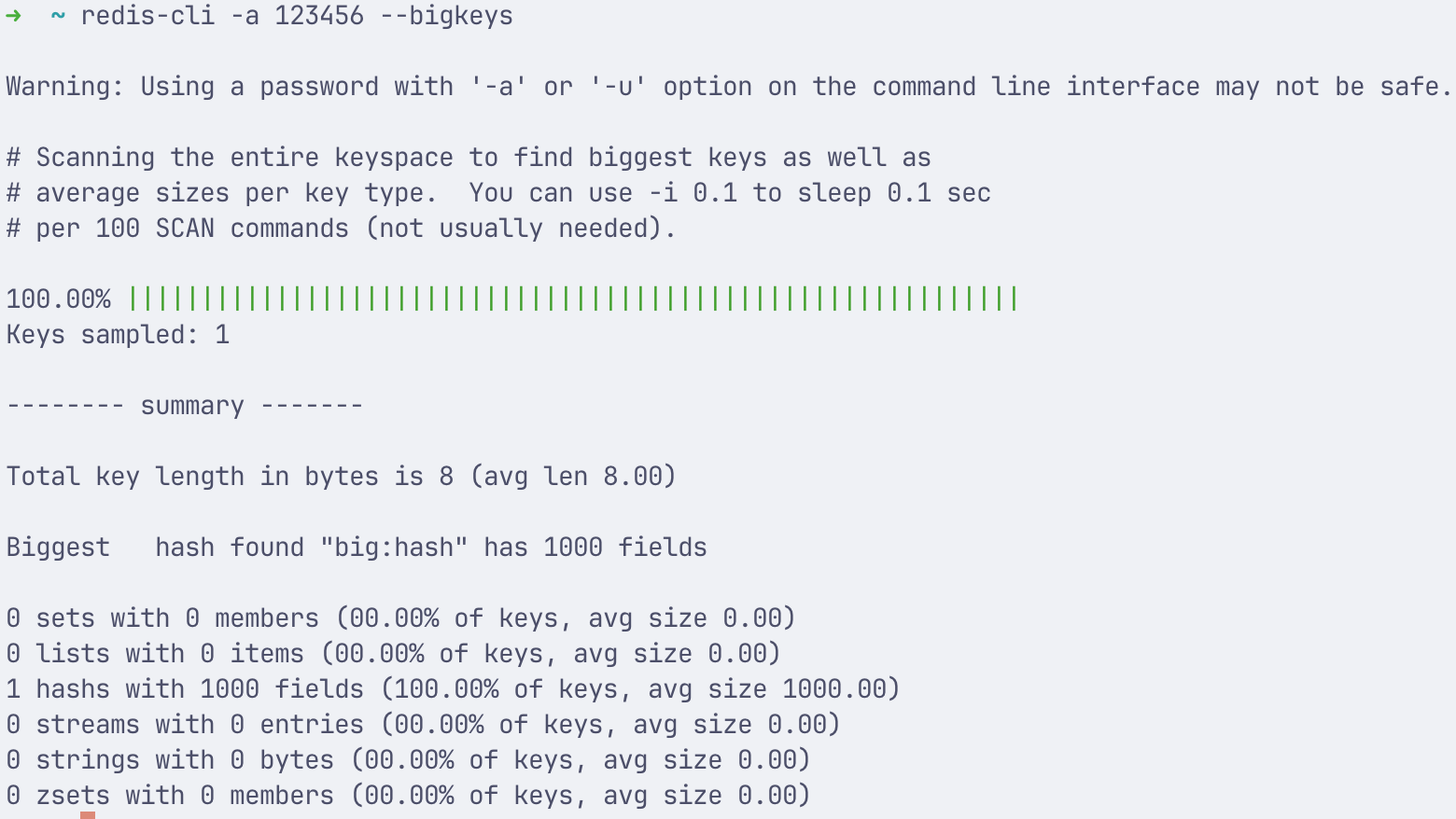

        • 粗定位 –bigkeys (抽样/扫描)
          • 看到按类型统计的最大 key
          • 会扫描 keyspace，生产慎用

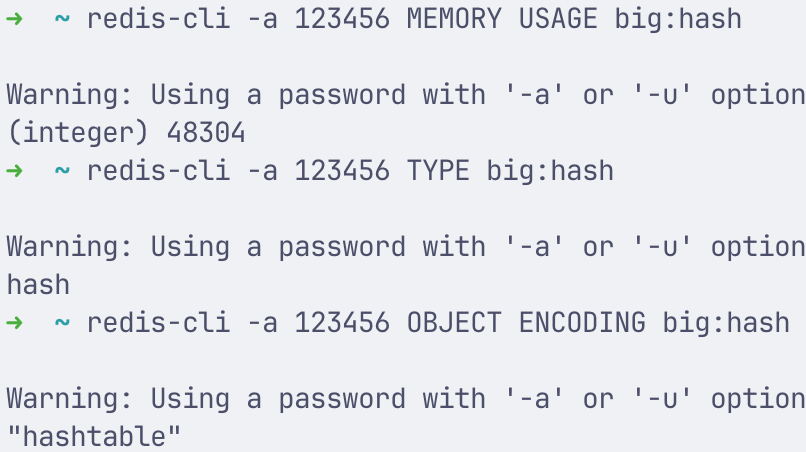

        • 精确测量 MEMORY USAGE
          • redis-cli -a 123456 MEMORY USAGE big:hash
        • 观察 BigKey 对延迟的影响
          • 打开延迟监控
            • redis-cli -a 123456 CONFIG SET latency-monitor-threshold 10
          • 删除 bigkey
          • 查看延迟事件
            • redis-cli -a 123456 LATENCY LATEST
        • 危害
          • 阻塞主线程
          • 复制/持久化压力
          • 网络抖动
        • 治理方案
          • 拆分设计

附录

缓存系统实战

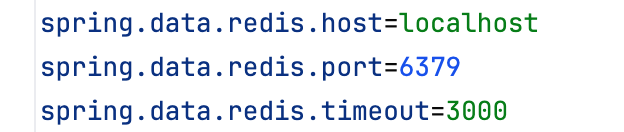

缓存系统实战 application.properties:

spring.data.redis.host=localhost
spring.data.redis.port=6379
spring.data.redis.timeout=3000

RedisTemplate 配置类:

@Configuration
public class RedisConfig {

    @Bean
    public StringRedisTemplate redisTemplate(RedisConnectionFactory factory) {
        return new StringRedisTemplate(factory);
    }

    @Bean
    public ObjectMapper objectMapper() {
        return JsonMapper.builder().build();
    }
}

Service 类：

@Service
@RequiredArgsConstructor
public class UserService {

    private final StringRedisTemplate redis;
    private final ObjectMapper mapper;
    private final FakeDatabase db;

    public User getUser(Long id) throws Exception {
        String key = "user:" + id;
        // 查缓存
        String cache = redis.opsForValue().get(key);

        if (cache != null) {
            if ("NULL".equals(cache)) {
                return null;
            }
            return mapper.readValue(cache, User.class);
        }

        // 防缓存击穿（热点 key 失效瞬间，大量请求直接打数据库），加锁
        Boolean lock = redis.opsForValue()
                .setIfAbsent("lock:" + id, "1", Duration.ofSeconds(5));
        if (Boolean.FALSE.equals(lock)) {
            Thread.sleep(50);
            return getUser(id);
        }

        // 查数据库
        User user = db.queryUser(id);
        if (user == null) {
            // 防缓存穿透，请求的数据本身就不存在，攻击者疯狂请求，每次请求都打 DB
            redis.opsForValue().set(key, "NULL", Duration.ofSeconds(30));
            return null;
        }

        // 写缓存 + 随机 TTL，防止缓存雪崩
        int ttl = 60 + new Random().nextInt(20);

        String json = mapper.writeValueAsString(user);

        redis.opsForValue().set(key, json, Duration.ofSeconds(ttl));
        return user;
    }
}

Controller 类

@RestController
@RequiredArgsConstructor
public class UserController {

    private final UserService userService;

    @GetMapping("/user/{id}")
    public User get(@PathVariable Long id) throws Exception {
        return userService.getUser(id);
    }
}

FakeDB 类

@Component
public class FakeDatabase {

    public User queryUser(Long id) {
        try {
            Thread.sleep(100);
        }   catch (Exception ignored) {

        }
        if (id == 999L) {
            return null;
        }
        return new User(id, "User_" + id);
    }
}

秒杀系统实战

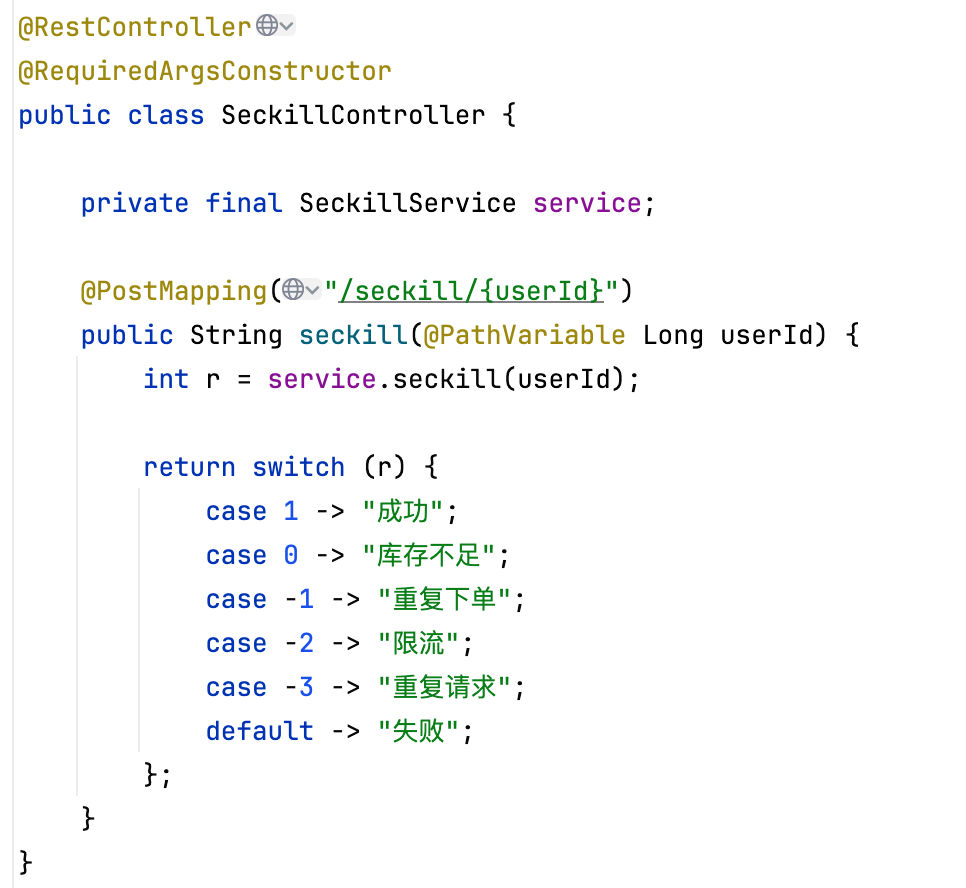

SeckillController

@RestController
@RequiredArgsConstructor
public class SeckillController {

    private final SeckillService service;

    @PostMapping("/seckill/{userId}")
    public String seckill(@PathVariable Long userId) {
        int r = service.seckill(userId);

        return switch (r) {
            case 1 -> "成功";
            case 0 -> "库存不足";
            case -1 -> "重复下单";
            case -2 -> "限流";
            case -3 -> "重复请求";
            default -> "失败";
        };
    }
}

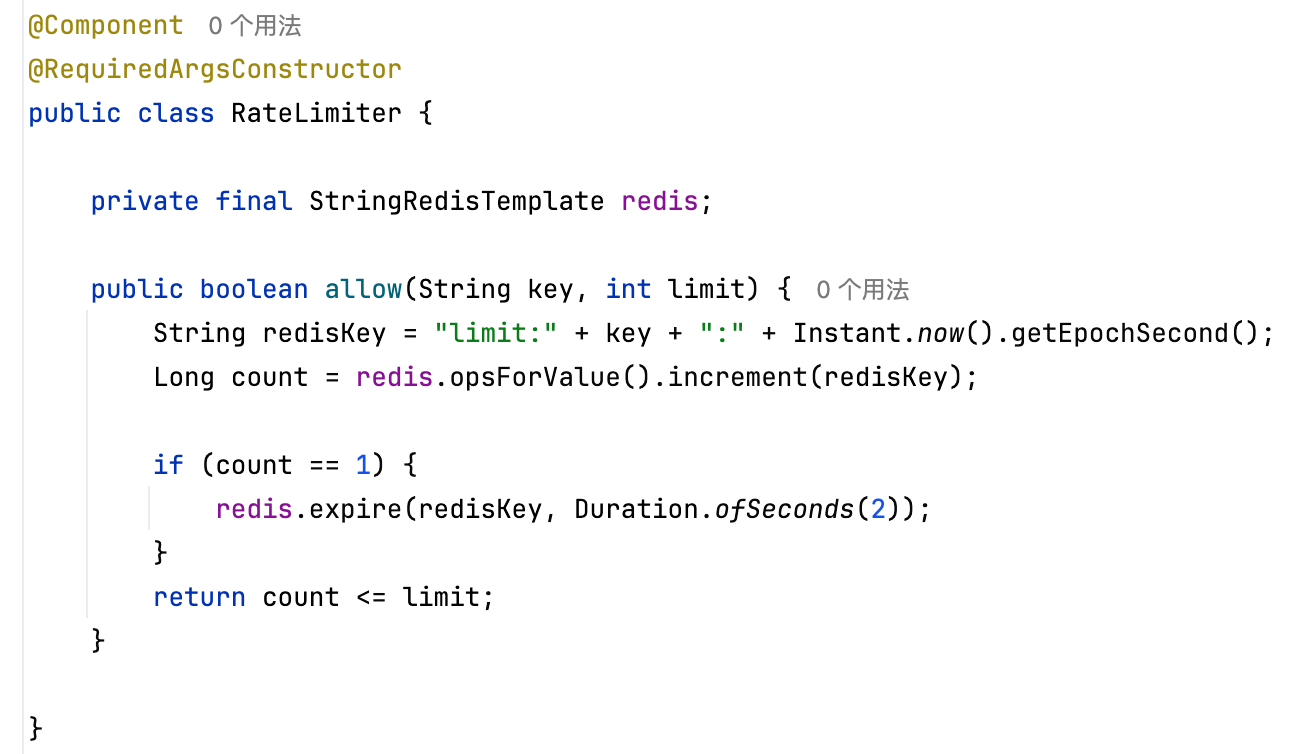

RateLimiter

@Component
@RequiredArgsConstructor
public class RateLimiter {

    private final StringRedisTemplate redis;

    public boolean allow(String key, int limit) {
        String redisKey = "limit:" + key + ":" + Instant.now().getEpochSecond();
        Long count = redis.opsForValue().increment(redisKey);

        if (count == 1) {
            redis.expire(redisKey, Duration.ofSeconds(2));
        }
        return count <= limit;
    }
}

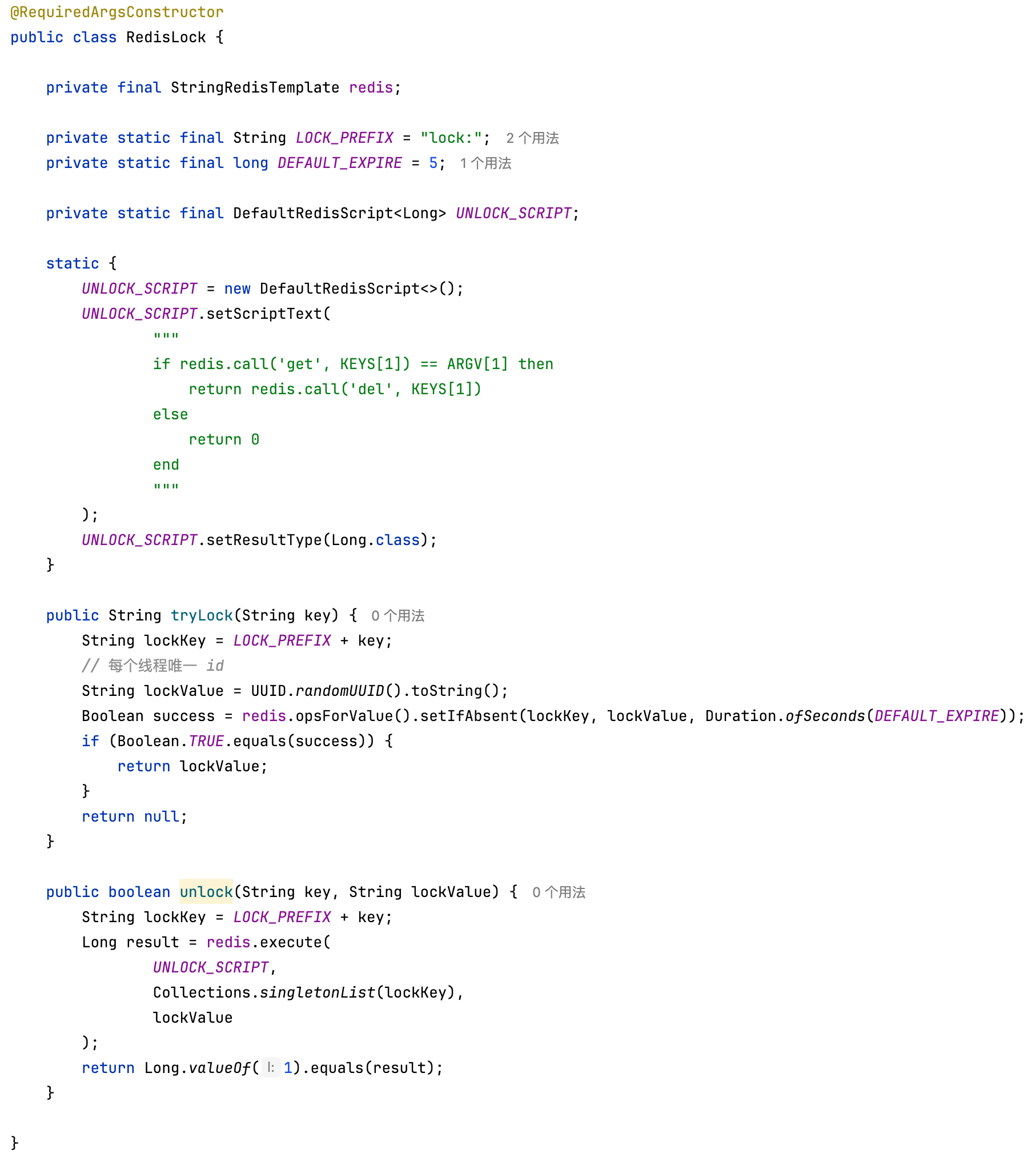

RedisLock

@Component
@RequiredArgsConstructor
public class RedisLock {

    private final StringRedisTemplate redis;

    private static final String LOCK_PREFIX = "lock:";
    private static final long DEFAULT_EXPIRE = 5;

    private static final DefaultRedisScript<Long> UNLOCK_SCRIPT;

    static {
        UNLOCK_SCRIPT = new DefaultRedisScript<>();
        UNLOCK_SCRIPT.setScriptText(
                """
                if redis.call('get', KEYS[1]) == ARGV[1] then
                    return redis.call('del', KEYS[1])
                else
                    return 0
                end
                """
        );
        UNLOCK_SCRIPT.setResultType(Long.class);
    }

    public String tryLock(String key) {
        String lockKey = LOCK_PREFIX + key;
        // 每个线程唯一 id
        String lockValue = UUID.randomUUID().toString();
        Boolean success = redis.opsForValue().setIfAbsent(lockKey, lockValue, Duration.ofSeconds(DEFAULT_EXPIRE));
        if (Boolean.TRUE.equals(success)) {
            return lockValue;
        }
        return null;
    }

    public boolean unlock(String key, String lockValue) {
        String lockKey = LOCK_PREFIX + key;
        Long result = redis.execute(
                UNLOCK_SCRIPT,
                Collections.singletonList(lockKey),
                lockValue
        );
        return Long.valueOf(1).equals(result);
    }

}

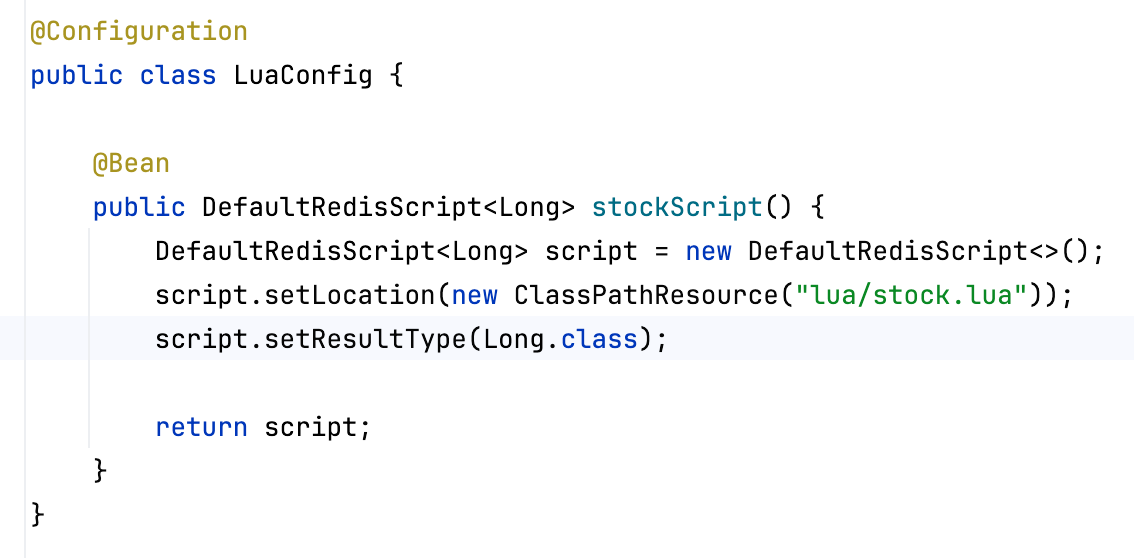

LuaConfig

@Configuration
public class LuaConfig {

    @Bean
    public DefaultRedisScript<Long> stockScript() {
        DefaultRedisScript<Long> script = new DefaultRedisScript<>();
        script.setLocation(new ClassPathResource("lua/stock.lua"));
        script.setResultType(Long.class);

        return script;
    }
}

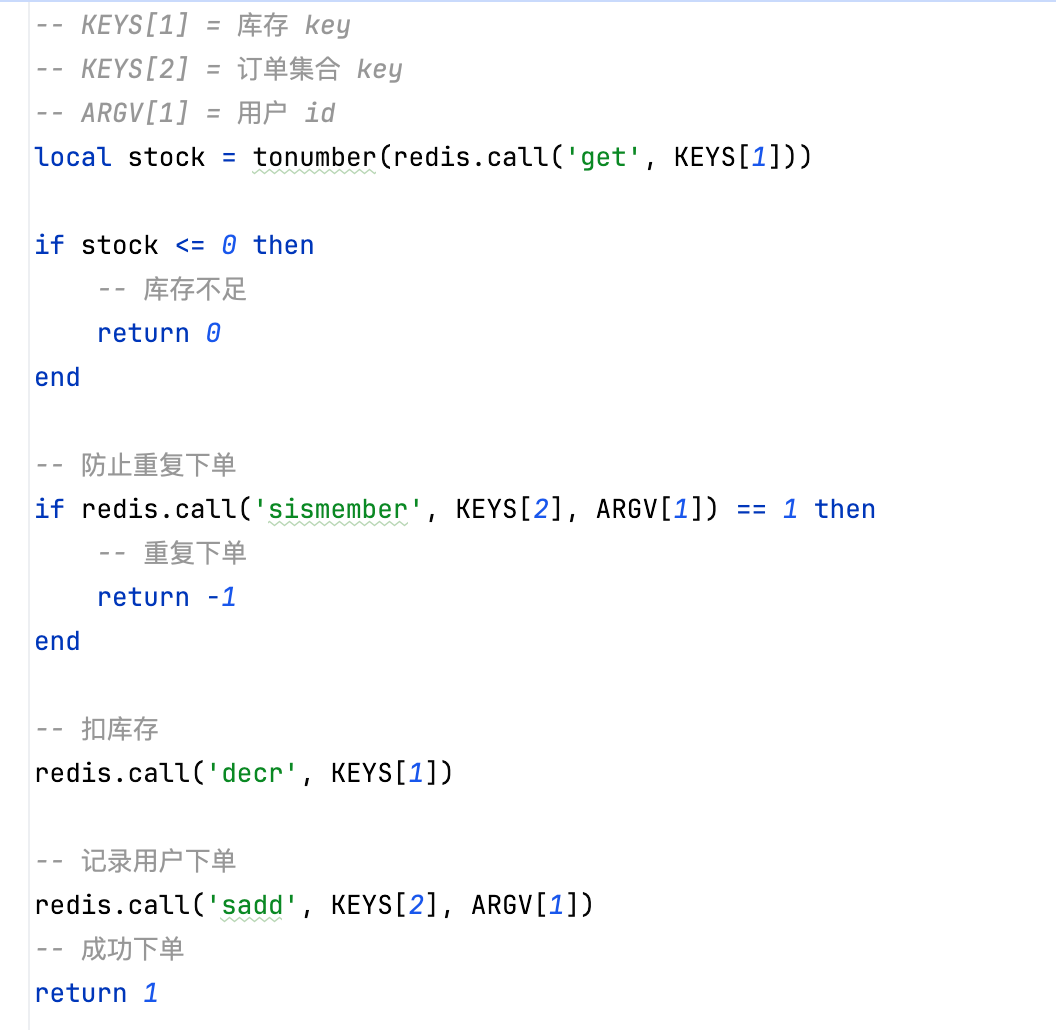

stock.lua

-- KEYS[1] = 库存 key
-- KEYS[2] = 订单集合 key
-- ARGV[1] = 用户 id
local stock = tonumber(redis.call('get', KEYS[1]))

if stock <= 0 then
    -- 库存不足
    return 0
end

-- 防止重复下单
if redis.call('sismember', KEYS[2], ARGV[1]) == 1 then
    -- 重复下单
    return -1
end

-- 扣库存
redis.call('decr', KEYS[1])

-- 记录用户下单
redis.call('sadd', KEYS[2], ARGV[1])
-- 成功下单
return 1

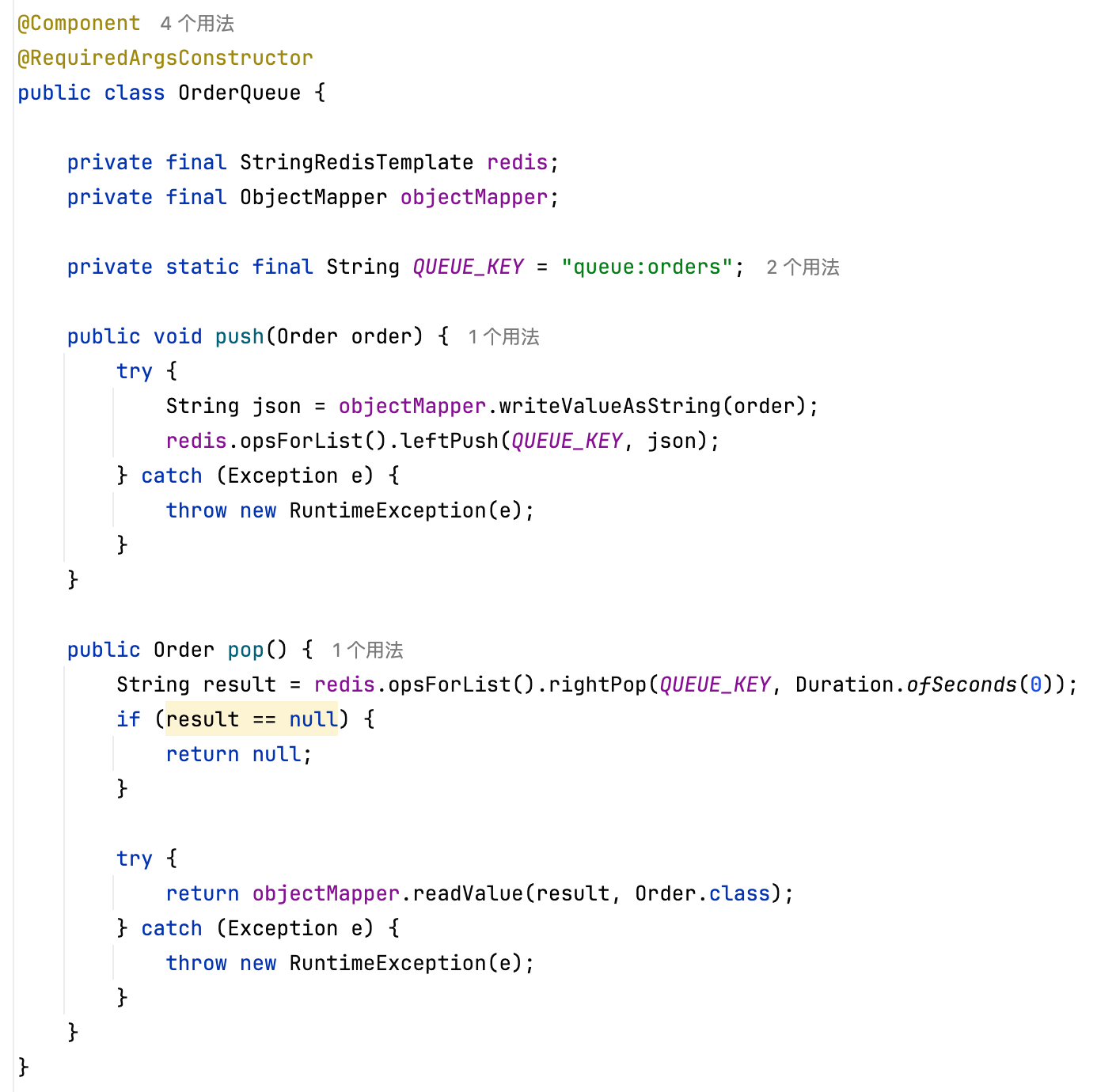

OrderQueue

@Component
@RequiredArgsConstructor
public class OrderQueue {

    private final StringRedisTemplate redis;
    private final ObjectMapper objectMapper;

    private static final String QUEUE_KEY = "queue:orders";

    public void push(Order order) {
        try {
            String json = objectMapper.writeValueAsString(order);
            redis.opsForList().leftPush(QUEUE_KEY, json);
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
    }

    public Order pop() {
        String result = redis.opsForList().rightPop(QUEUE_KEY, Duration.ofSeconds(0));
        if (result == null) {
            return null;
        }

        try {
            return objectMapper.readValue(result, Order.class);
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
    }
}

OrderWorker

@Component
@RequiredArgsConstructor
public class OrderWorker {

    private final OrderQueue queue;

    @PostConstruct
    public void start() {
        Thread work = new Thread(() -> {
            while(true) {
                Order order =queue.pop();
                if (order != null) {
                    process(order);
                }
            }
        });

        work.setDaemon(true);
        work.start();
    }

    private void process(Order order) {
        System.out.println("处理订单: " + order);
        try {
            Thread.sleep(100);
        } catch (Exception ignored) {

        }
    }
}

SeckillService

@Service
@RequiredArgsConstructor
public class SeckillService {

    private final StringRedisTemplate redis;
    private final DefaultRedisScript<Long> stockScript;
    private final OrderQueue queue;
    private final RateLimiter rateLimiter;
    private final RedisLock redisLock;

    public int seckill(Long userId) {

        if (!rateLimiter.allow("seckill", 100)) {
            return -2; // 系统繁忙
        }

        // 获取分布式锁
        String token = redisLock.tryLock("user:" + userId);
        if (token == null) {
            return -3;
        }

        try {
            List<String> keys = List.of(
                    "seckill:stock",
                    "seckill:orders"
            );

            Long result = redis.execute(stockScript, keys, userId.toString());

            if (result == 1) {
                Order order = new Order(userId, System.currentTimeMillis());
                queue.push(order);
            }
            return result.intValue();
        } finally {
            redisLock.unlock("user:" + userId, token);
        }
    }

}

秒杀系统滑动窗口限流进阶

ratelimit.lua

-- KEYS[1] = rate limit key (zset)
-- ARGV[1] = now(ms)
-- ARGV[2] = window(ms)
-- ARGV[3] = limit(max requests in window)
-- ARGV[4] = member(unique id for this requests)
-- ARGV[5] = expireSeconds(Key ttl)

local key = KEYS[1]
local now = tonumber(ARGV[1])
local window = tonumber(ARGV[2])
local limit = tonumber(ARGV[3])
local member = ARGV[4]
local expireSeconds = tonumber(ARGV[5])

-- 1 remove out-of-window
redis.call('zremrangebyscore', key, 0, now - window)

-- 2 current call
local cnt = redis.call('zcard', key)

-- 3 if exceed, reject
if cnt >= limit then
    return 0
end

-- 4 add current request
redis.call('zadd', key, now, member)

-- 5 set ttl to avoid key leak
redis.call('expire', key, expireSeconds)
return 1

LuaConfig

@Bean
public DefaultRedisScript<Long> rateLimitScript() {
    DefaultRedisScript<Long> script = new DefaultRedisScript<>();
    script.setLocation(new ClassPathResource("lua/ratelimit.lua"));
    script.setResultType(Long.class);
    return script;
}

SlidingWindowLimit

@Component
@RequiredArgsConstructor
public class SlidingWindowRateLimiter {

    private final StringRedisTemplate redis;
    private final DefaultRedisScript<Long> rateLimitScript;

    public boolean allow(String key, int limit, long windowMs) {
        long now = System.currentTimeMillis();

        // 每次请求唯一 member
        String member = now + "-" + UUID.randomUUID();

        // key TTL，一般设置为 window 的 2-3 倍，保证窗口内数据可用并自动回收
        long expireSeconds = Math.max(2, (windowMs * 3) / 1000);

        String redisKey = "rl:" + key;

        Long result = redis.execute(
                rateLimitScript,
                Collections.singletonList(redisKey),
                String.valueOf(now),
                String.valueOf(windowMs),
                String.valueOf(limit),
                member,
                String.valueOf(expireSeconds)
        );
        System.out.println("result:" + result);
        return Long.valueOf(1).equals(result);
    }
}

秒杀系统进阶令牌桶

token_bucket.lua

-- KEYS[1] = bucket key
-- ARGV[1] = now_ms
-- ARGV[2] = capacity (max tokens)
-- ARGV[3] = refill_rate_per_sec (tokens per second)
-- ARGV[4] = cost (tokens per request, usually 1)
-- ARGV[5] = ttl_seconds (expire key to avoid leaks)

local key = KEYS[1]
local now = tonumber(ARGV[1])
local capacity = tonumber(ARGV[2])
local rate = tonumber(ARGV[3])
local cost = tonumber(ARGV[4])
local ttl = tonumber(ARGV[5])

-- Read current state
local tokens = redis.call('hget', key, 'tokens')
local ts = redis.call('hget', key, 'ts')

if tokens == false or ts == false then
    tokens = capacity
    ts = now
else
    tokens = tonumber(tokens)
    ts = tonumber(ts)
end

-- Refill tokens based on elapsed time
local delta_ms = now - ts
if delta_ms < 0 then
    delta_ms = 0
end

local refill = (delta_ms / 1000.0) * rate
tokens = math.min(capacity, tokens + refill)

-- Decide allow or reject
if tokens < cost then
    redis.call('hset', key, 'tokens', tokens)
    redis.call('hset', key, 'ts', now)
    redis.call('expire', key, ttl)
    return 0
end

-- Consume tokens
tokens = tokens - cost

redis.call('hset', key, 'tokens', tokens)
redis.call('hset', key, 'ts', now)
redis.call('expire', key, ttl)

return 1

TokenBucketRateLimiter

@Component
@RequiredArgsConstructor
public class TokenBucketRateLimiter {

    private final StringRedisTemplate redis;
    private final DefaultRedisScript<Long> tokenBucketScript;

    /**
     * 令牌桶限流
     * @param key 限流维度
     * @param capacity 桶容量
     * @param ratePerSec 补充速率
     * @param cost 每次请求消耗令牌数
     */
    public boolean allow(String key, long capacity, double ratePerSec, long cost) {
        long now = System.currentTimeMillis();
        String redisKey = "tb:" + key;

        // TTL: 建议 >= 桶完全补满的时间 * 2 (避免闲置 key 常驻)
        // refill time ≈ capacity / ratePerSec
        long refillSeconds = (long) Math.ceil(capacity / Math.max(ratePerSec, 0.0000001));
        long ttlSeconds = Math.max(2, refillSeconds * 2);

        Long result = redis.execute(
                tokenBucketScript,
                Collections.singletonList(redisKey),
                String.valueOf(now),
                String.valueOf(capacity),
                String.valueOf(ratePerSec),
                String.valueOf(cost),
                String.valueOf(ttlSeconds)
        );
        return Long.valueOf(1).equals(result);
    }
}

LuaConfig

@Bean
public DefaultRedisScript<Long> tokenBucketScript() {
    DefaultRedisScript<Long> script = new DefaultRedisScript<>();
    script.setLocation(new ClassPathResource("lua/token_bucket.lua"));
    script.setResultType(Long.class);
    return script;
}

哨兵实验

docker-compose

services:
  redis-master:
    image: redis:7
    container_name: redis-master
    command: ["redis-server", "/usr/local/etc/redis/redis.conf"]
    volumes:
      - ./conf/redis-master.conf:/usr/local/etc/redis/redis.conf
      - ./data/master:/data
    ports:
      - "6379:6379"
    networks: [redisnet]

  redis-replica-1:
    image: redis:7
    container_name: redis-replica-1
    depends_on: [redis-master]
    command: ["redis-server", "/usr/local/etc/redis/redis.conf", "--replicaof", "redis-master", "6379"]
    volumes:
      - ./conf/redis-replica.conf:/usr/local/etc/redis/redis.conf
      - ./data/replica1:/data
    ports:
      - "6380:6379"
    networks: [redisnet]

  redis-replica-2:
    image: redis:7
    container_name: redis-replica-2
    depends_on: [redis-master]
    command: ["redis-server", "/usr/local/etc/redis/redis.conf", "--replicaof", "redis-master", "6379"]
    volumes:
      - ./conf/redis-replica.conf:/usr/local/etc/redis/redis.conf
      - ./data/replica2:/data
    ports:
      - "6381:6379"
    networks: [redisnet]

  sentinel-1:
    image: redis:7
    container_name: sentinel-1
    depends_on: [redis-master, redis-replica-1, redis-replica-2]
    command:
      [
        "sh","-c",
        "cp /usr/local/etc/redis/sentinel.conf /data/sentinel.conf && exec redis-sentinel /data/sentinel.conf"
      ]
    volumes:
      - ./conf/sentinel.conf:/usr/local/etc/redis/sentinel.conf
      - ./data/s1:/data
    ports:
      - "26379:26379"
    networks: [redisnet]

  sentinel-2:
    image: redis:7
    container_name: sentinel-2
    depends_on: [redis-master, redis-replica-1, redis-replica-2]
    command:
      [
        "sh","-c",
        "cp /usr/local/etc/redis/sentinel.conf /data/sentinel.conf && exec redis-sentinel /data/sentinel.conf"
      ]
    volumes:
      - ./conf/sentinel.conf:/usr/local/etc/redis/sentinel.conf
      - ./data/s2:/data
    ports:
      - "26380:26379"
    networks: [redisnet]

  sentinel-3:
    image: redis:7
    container_name: sentinel-3
    depends_on: [redis-master, redis-replica-1, redis-replica-2]
    command:
      [
        "sh","-c",
        "cp /usr/local/etc/redis/sentinel.conf /data/sentinel.conf && exec redis-sentinel /data/sentinel.conf"
      ]
    volumes:
      - ./conf/sentinel.conf:/usr/local/etc/redis/sentinel.conf
      - ./data/s3:/data
    ports:
      - "26381:26379"
    networks: [redisnet]

networks:
  redisnet:
    driver: bridge

哨兵故障演练实验

docker-compose.yml

services:
  redis-master:
    image: redis:7
    container_name: redis-master
    command: ["redis-server", "/usr/local/etc/redis/redis.conf"]
    volumes:
      - ./conf/redis-master.conf:/usr/local/etc/redis/redis.conf
      - ./data/master:/data
    ports:
      - "6379:6379"
    networks:
      redisnet:
        ipv4_address: 172.28.0.10

  redis-replica-1:
    image: redis:7
    container_name: redis-replica-1
    depends_on: [redis-master]
    command: ["redis-server", "/usr/local/etc/redis/redis.conf", "--replicaof", "172.28.0.10", "6379"]
    volumes:
      - ./conf/redis-replica.conf:/usr/local/etc/redis/redis.conf
      - ./data/replica1:/data
    ports:
      - "6380:6379"
    networks: [redisnet]

  redis-replica-2:
    image: redis:7
    container_name: redis-replica-2
    depends_on: [redis-master]
    command: ["redis-server", "/usr/local/etc/redis/redis.conf", "--replicaof", "172.28.0.10", "6379"]
    volumes:
      - ./conf/redis-replica.conf:/usr/local/etc/redis/redis.conf
      - ./data/replica2:/data
    ports:
      - "6381:6379"
    networks: [redisnet]

  sentinel-1:
    image: redis:7
    container_name: sentinel-1
    depends_on: [redis-master, redis-replica-1, redis-replica-2]
    command:
      [
        "sh","-c",
        "cp /usr/local/etc/redis/sentinel.conf /data/sentinel.conf && exec redis-sentinel /data/sentinel.conf"
      ]
    volumes:
      - ./conf/sentinel.conf:/usr/local/etc/redis/sentinel.conf
      - ./data/s1:/data
    ports:
      - "26379:26379"
    networks: [redisnet]

  sentinel-2:
    image: redis:7
    container_name: sentinel-2
    depends_on: [redis-master, redis-replica-1, redis-replica-2]
    command:
      [
        "sh","-c",
        "cp /usr/local/etc/redis/sentinel.conf /data/sentinel.conf && exec redis-sentinel /data/sentinel.conf"
      ]
    volumes:
      - ./conf/sentinel.conf:/usr/local/etc/redis/sentinel.conf
      - ./data/s2:/data
    ports:
      - "26380:26379"
    networks: [redisnet]

  sentinel-3:
    image: redis:7
    container_name: sentinel-3
    depends_on: [redis-master, redis-replica-1, redis-replica-2]
    command:
      [
        "sh","-c",
        "cp /usr/local/etc/redis/sentinel.conf /data/sentinel.conf && exec redis-sentinel /data/sentinel.conf"
      ]
    volumes:
      - ./conf/sentinel.conf:/usr/local/etc/redis/sentinel.conf
      - ./data/s3:/data
    ports:
      - "26381:26379"
    networks: [redisnet]

networks:
  redisnet:
    driver: bridge
    ipam:
      config:
        - subnet: 172.28.0.0/16

sentinel.conf

port 26379
bind 0.0.0.0
protected-mode no

# 监控主库：mymaster 名称、主库 host/port、quorum（法定票数）
sentinel monitor mymaster 172.28.0.10 6379 2

# 认证（主库有 requirepass 时必须加）
sentinel auth-pass mymaster 123456

# 多久没响应算主观下线（ms）
sentinel down-after-milliseconds mymaster 5000

# 故障转移超时（ms）
sentinel failover-timeout mymaster 10000

# 同时同步副本数量（不影响本实验搭建，可保留默认）
sentinel parallel-syncs mymaster 1

# Redis 7 的 Sentinel 默认会把 monitor 的 host 当成“IP/可直接解析的实例”，
# 在某些环境下它不会走你以为的 resolver 路径（或要求显式开启 hostname 解析）
# 解决方法是——打开 Sentinel 的 hostname 解析开关
sentinel resolve-hostnames yes
sentinel announce-hostnames yes
